Product number: LRST96851M4S
Views:930Times
Tags:

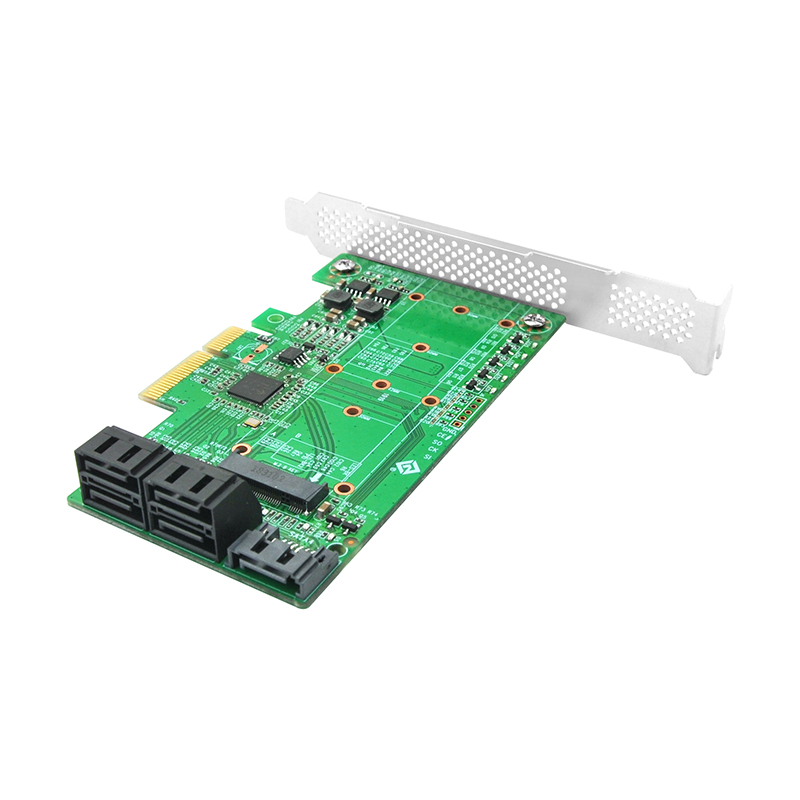

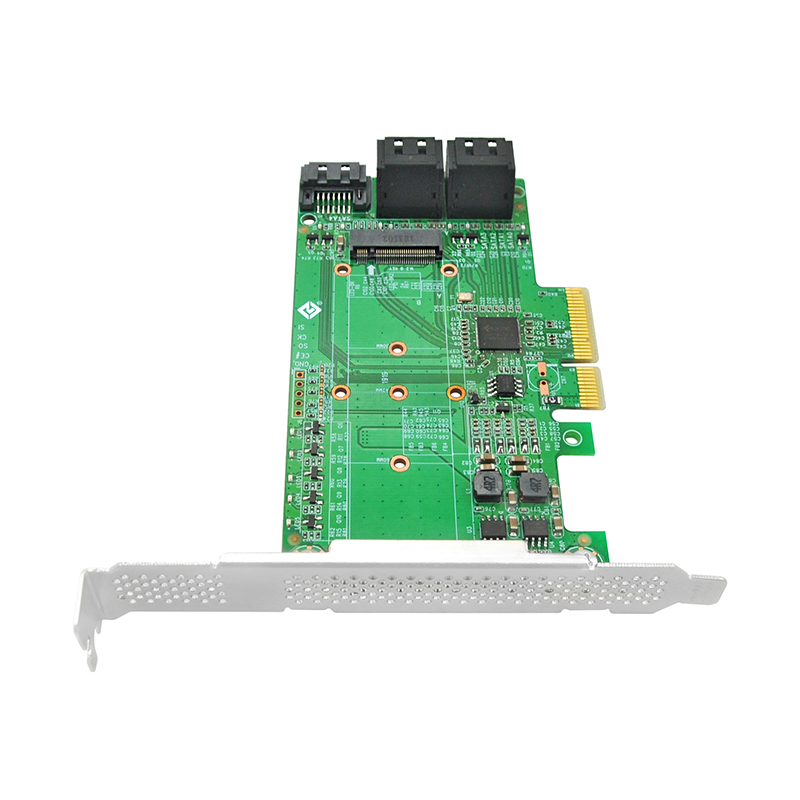

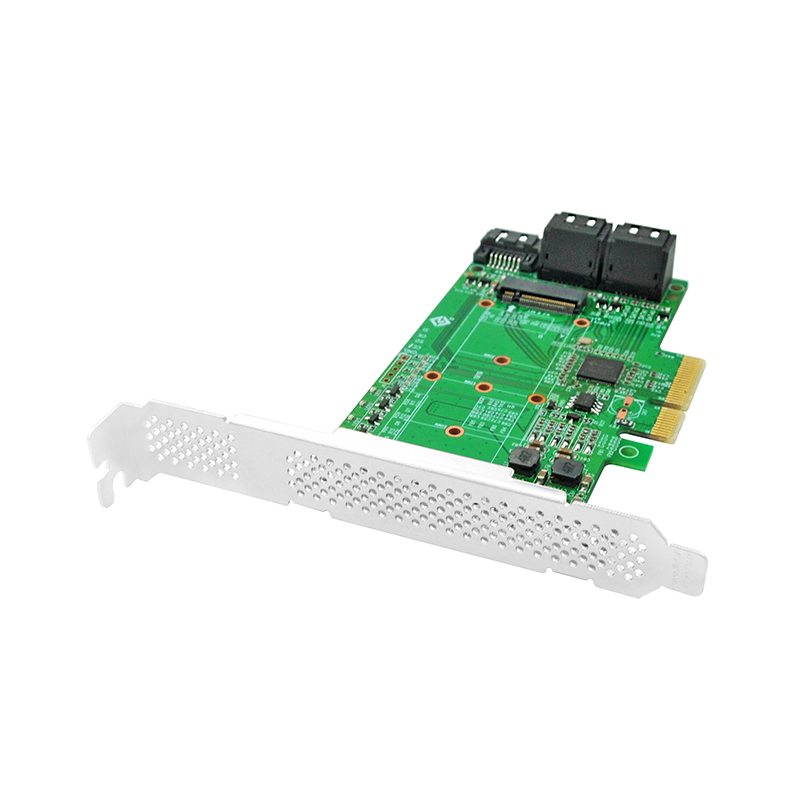

This adapter expands a PC by 5 SATA 3.0 ports or four internal SATA ports and one M.2 slot . Different devices such as SSDs, hard drives, DVD-drives etc. and one M.2 module in 2280 to 2230 format can be connected to the card.
Standards Compliant
|
HARDWARE |
|
|
Model |
LRST9685-1M4S |
|
I/O Controller |
JMC585 |
|
Upstream |
PCIe x4 Edge connecting finger (PCIe 3.0 X4 bandwidth) |
|
Downstream Port |
1 internal NGFF M.2 Key B & 4 internal SATA or 5 internal SATA 3.0 Ports |
|
Power |
2.1W |
|
CONNECTOR(S) |
|
|
Connector |
100ohm, 75pin (pitch=0.75) 7pin SATA |
|
PHYSICAL CHARACTERISTICS |
|
|
Physical Dimensions |
115mm x69mm |
|
Product Weight |
1.75oz [50 g] |
|
Bracket Support |
Full height, half length |
|
ENVIRONMENTAL |
|
|
Operating Temperature |
0°C to 60°C (32°F to 140°F) |
|
Storage Temperature |
-25°C to 70°C (-13°F to 158°F) |
|
OS Support |
Microsoft Windows, Linux |
|
WARRANTY INFORMATION |
|
|
Hardware Warranty |
2 Years |
|
Regulator Certificates |
ROHS,CE,FCC |
|
WHAT’S IN THE BOX |
|
|
Included in Package |
1 - PCI Express to 1 M.2 &4 SATA Card or 5 SATA 3.0 Card 1 - low-profile bracket 1 - full-height bracket(installed) 1 - Screw&Nut for SSD |
