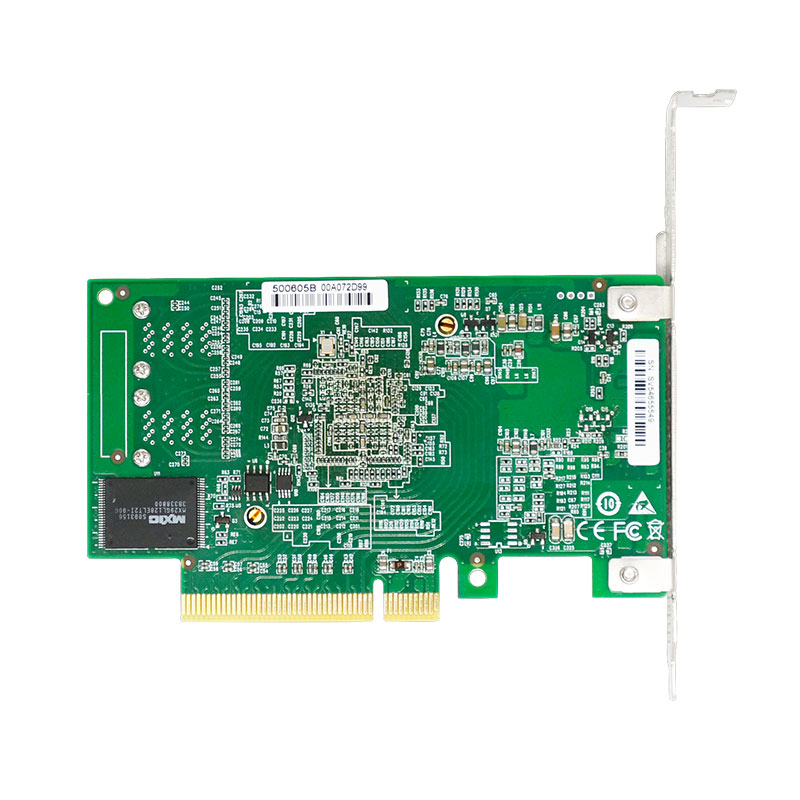

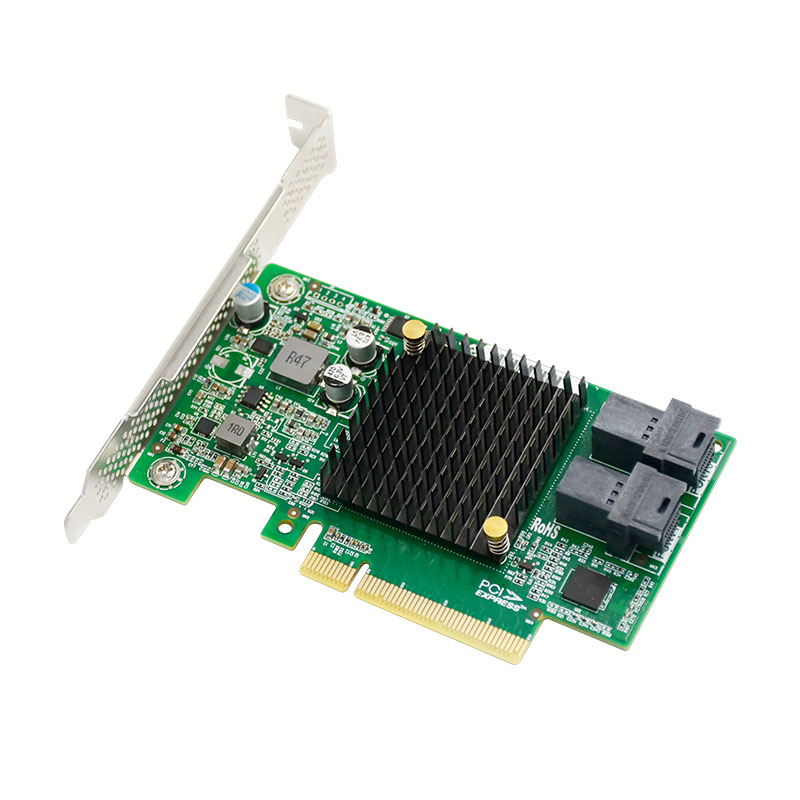

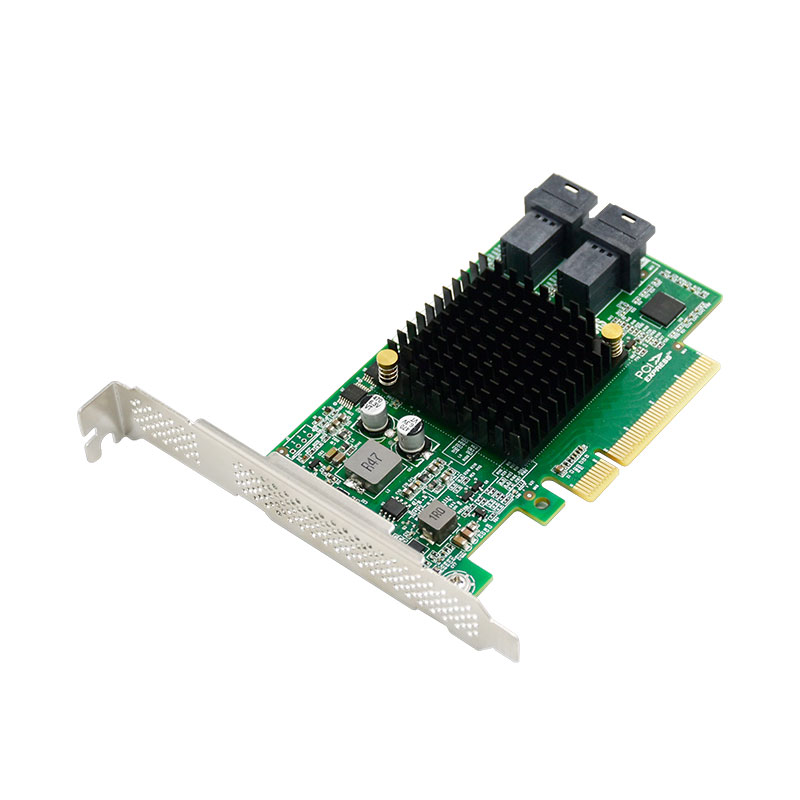

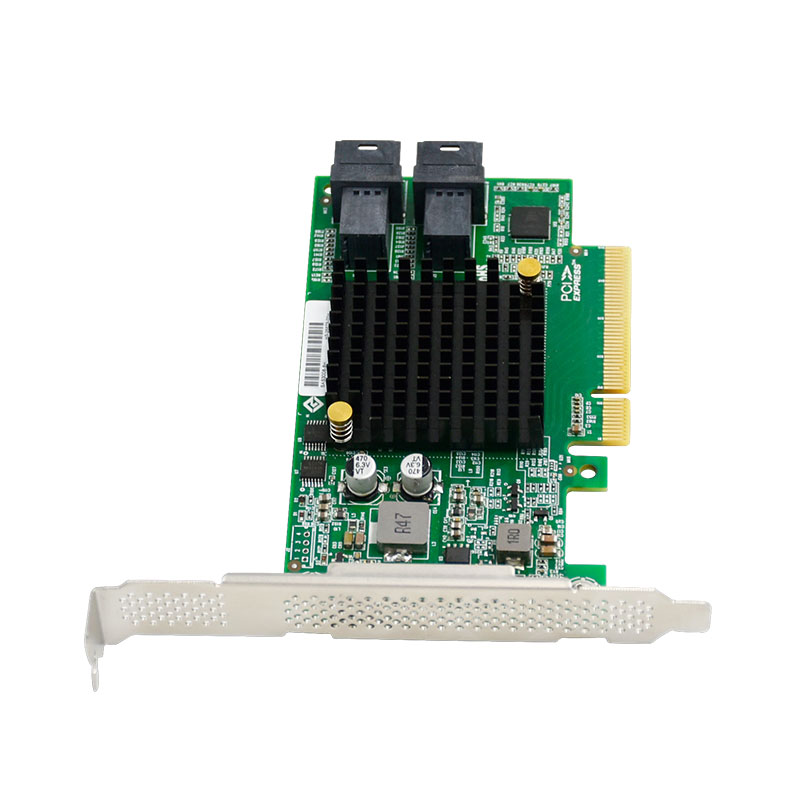

LRSA9C08-8H 12Gb/s PCIe x8 to 8-Port SAS SATA RAID Controller

Product number: LRSA9C088H12GbsPCIex8to8PortSA

Views:52Times

Tags：

Product Model:LRSA9C08-8H
Product Name:8 Port Internal SAS 12Gb/s PCIe 3.0 x8 RAID Controller Card
Main Chipset：SAS 3008
Interface Type：2*Mini-SAS(SFF-8643)
Support Equipment: 8*SAS/SATA/SSD 12Gb/s
Height：2U、3U
RAID Level:RAID 0,1,1E,10 and JBOD

Overview
Parameter
Related Products

LRSA9C08-8H has the same performance of our LRSA9C08-8IR Card with smaller size. It supports 8 SAS ports operating at 12Gb/s data transfer rates, and can reach over 1 million IOPs. The LRSA9C08-8H supports 8 PCI Express lanes that comply with the latest PCI Express 3.0 specifications. In addition, these adapters are backwards compatible with previous SAS and PCIe generations through automatic negotiation, and provide SAS data transfer rates of 12, 6, and 3 Gb/s per lane, and SATA data transfer rates of 6 and 3Gb/s per lane.

8 internal 12Gb/s SAS+SATA ports

8 lanes, PCI Express 3.0

Support RAID 0,1,1E,10 and JBOD

Mini-SAS HD connector

Two internal mini-SAS connectors (SFF-8643)

8 internal 12Gb/s SAS and SATA ports.

Supports SSDs, HDDs and tape drives

Host Bus Type	Host Interface	x8 lane PCI Express® 3.0
Host Bus Type	Device Interface	2*Mini-SAS HD (SFF-8643) connector (internal)
Physical Dimension	Form Factor	Full height, half length
	Board Dimension	114.8mm x 68.7mm
	Net Weight	129g
Device Support	Type/ Q'ty	Up to 16 SAS and SATA devices
Supported RAID	Hardware RAID	RAID0、1、10、1E、JBOD
Operating System	OS supported list	Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD;
Package	Card	LRSA9C08-8H
Package	Others
