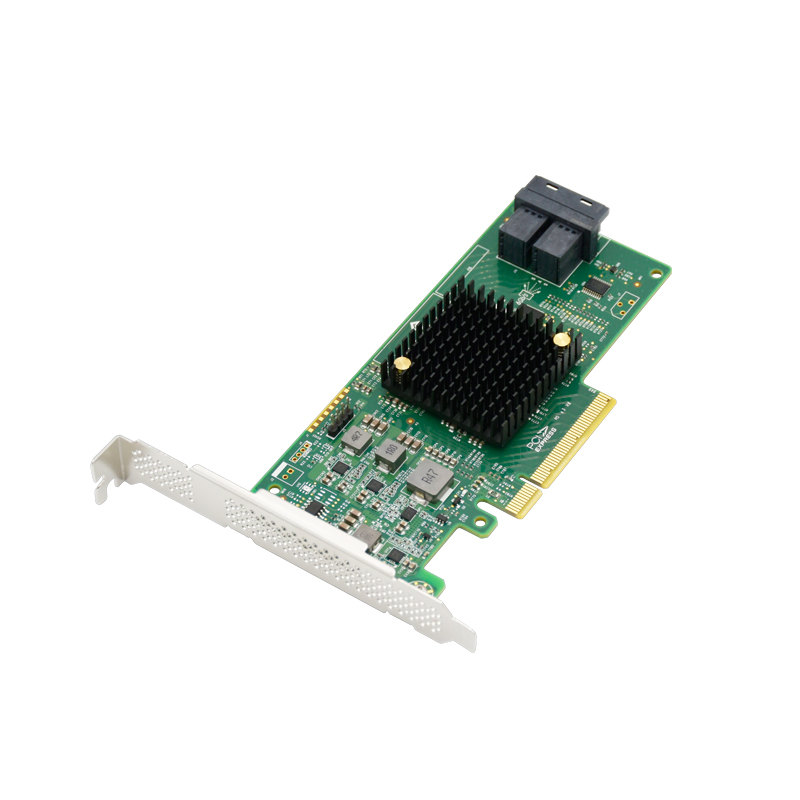

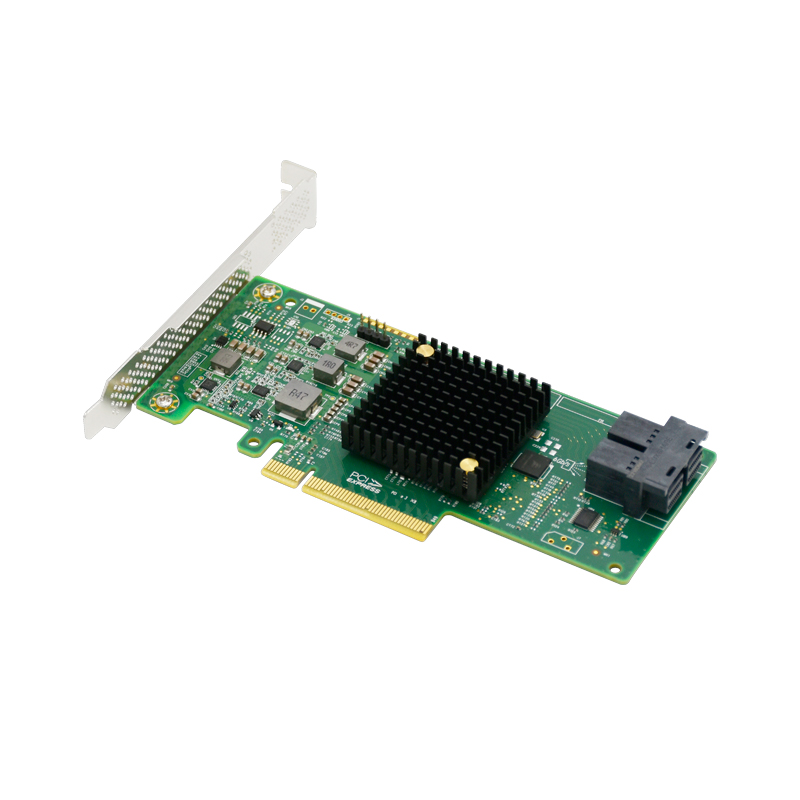

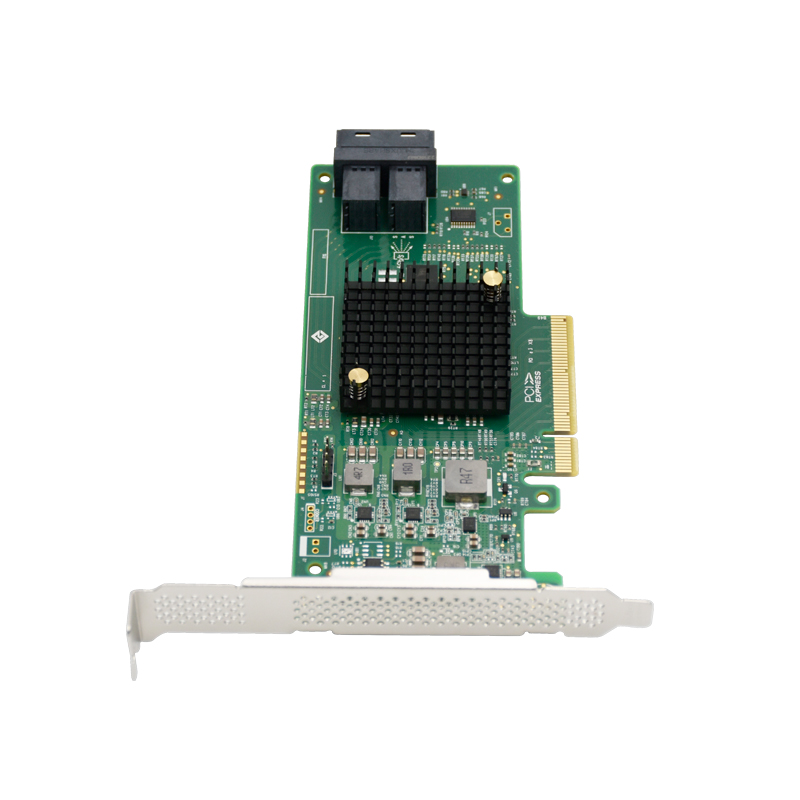

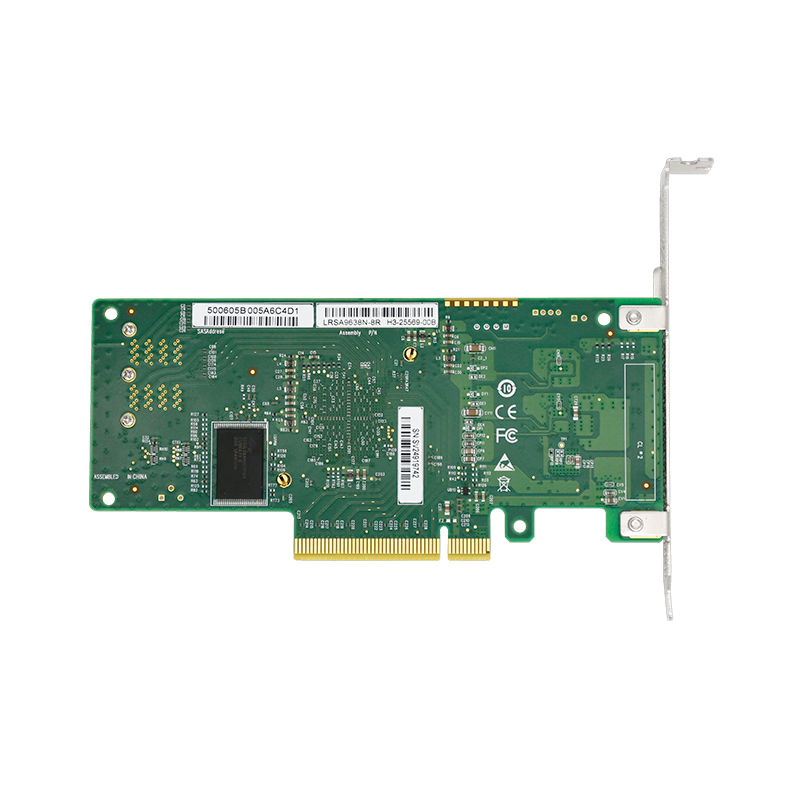

LRSA9638N-8R 8 Port, 6Gb/s SAS+SATA HBA

Product number: LRSA9638N8R6Gbs8portSASSATAHBA

Views:91Times

Tags:

Product Model:LRSA9638N-8R
Product Name:8 Port PCIe x8 to SFF-8643 6Gb/s RAID Card
Main Chipset: SAS 2308
Interface Type:2*4Mini-SAS(SFF-8643)
Support Equipment: 8*6Gb/s SAS
RAID Level:RAID 0、1、10 and 1E
  • Overview
  • Parameter
  • Related Products

Features:

8 internal 6Gb/s SAS+SATA ports
8 lanes, PCI Express 3.0
Low profile form factor design
Two x4 internal mini-SAS connectors (SFF-8643)
SAS2308 6Gb/s SAS+SATA Controller
Supports up to 256 SAS or SATA end devices

Supports SSDs, HDDs and tape drives

Offers Integrated RAID (0, 1, 1E and 10)


Advantages:

Provides internal connectivity in a low profile form factor
8 lanes of PCI Express 3.0 provides fast signaling for high-bandwidth applications

High performance with 6Gb/s data transfer rates


HARDWARE

Model

LRSA9638N-8R

Storage Data Transfer Rate

8 ports, 6Gb/s SAS 2.1 Compliant

I/O Controller

LSI SAS 2308

Host Bus Type

PCI Express 3.0 x8

Connectors

Two mini-SAS internal connectors (SFF-8643)

Device Support

256 Non-RAID devices

RAID

RAID 0, 1, 1E and 10

OPERATING SYSTEM

OS supported list

Windows, Red Hat, Linux, Suse, VMware, MAC OSX, FreeBSD

ENVIRONMENTAL

Humidity

5% – 90% Non-Condensing

Operating Temperature

0°C to 55°C

Storage Temperature

-45°C to 105°C

PHYSICAL CHARACTERISTICS

Product Dimension

150mm x69mm

Product Weight

139g

WARRANTY INFORMATION

Warranty

2 Years

WHAT'S IN THE BOX

Included in Package

1 -8-port, 6Gb/s SAS+SATA to PCIe Host Bus Adapter

1 - full-height bracket (installed)

1-  low-profile bracket
