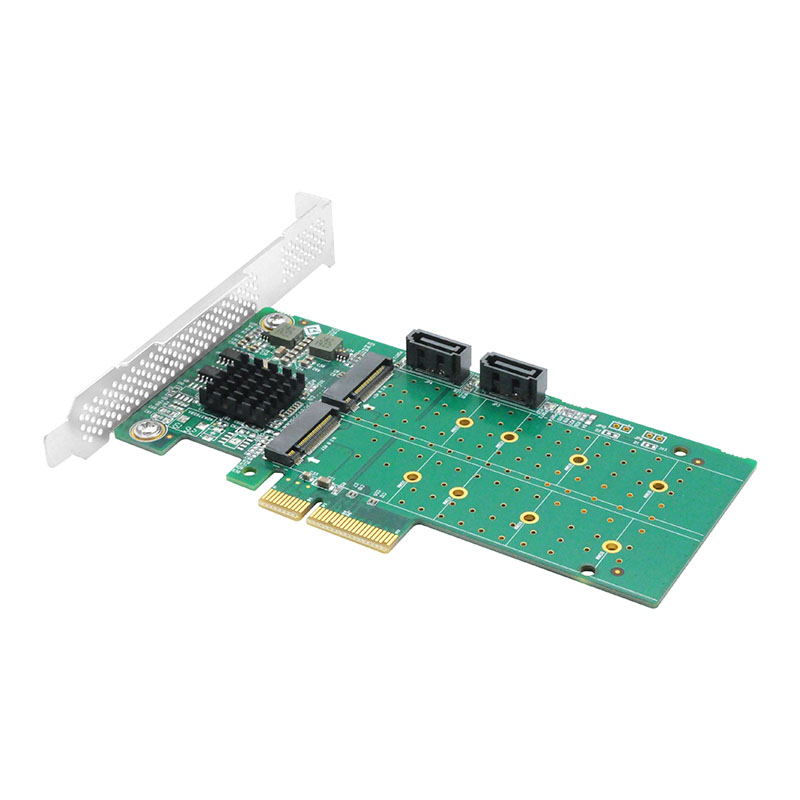

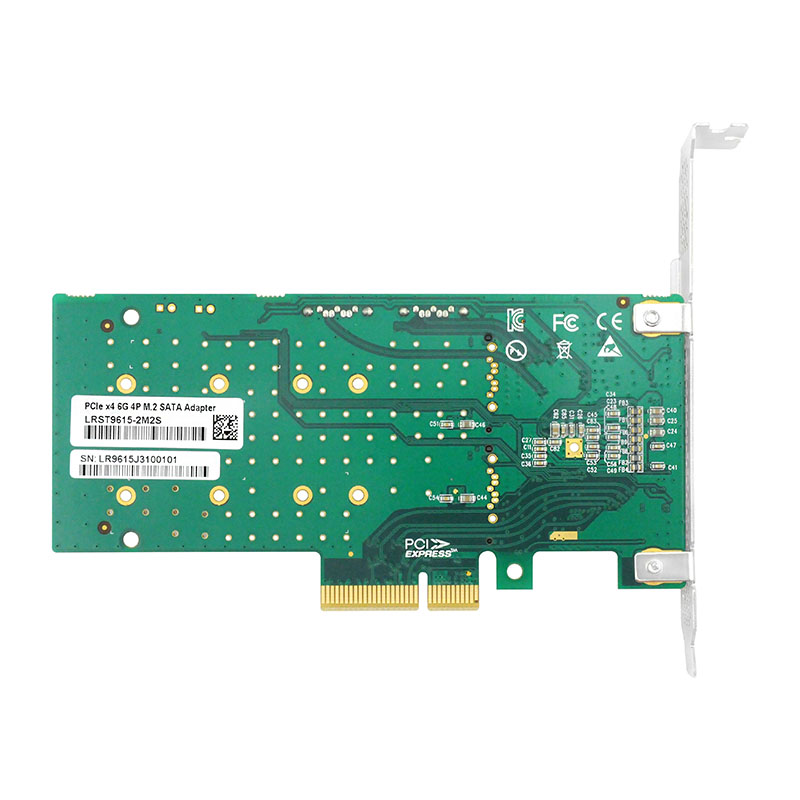

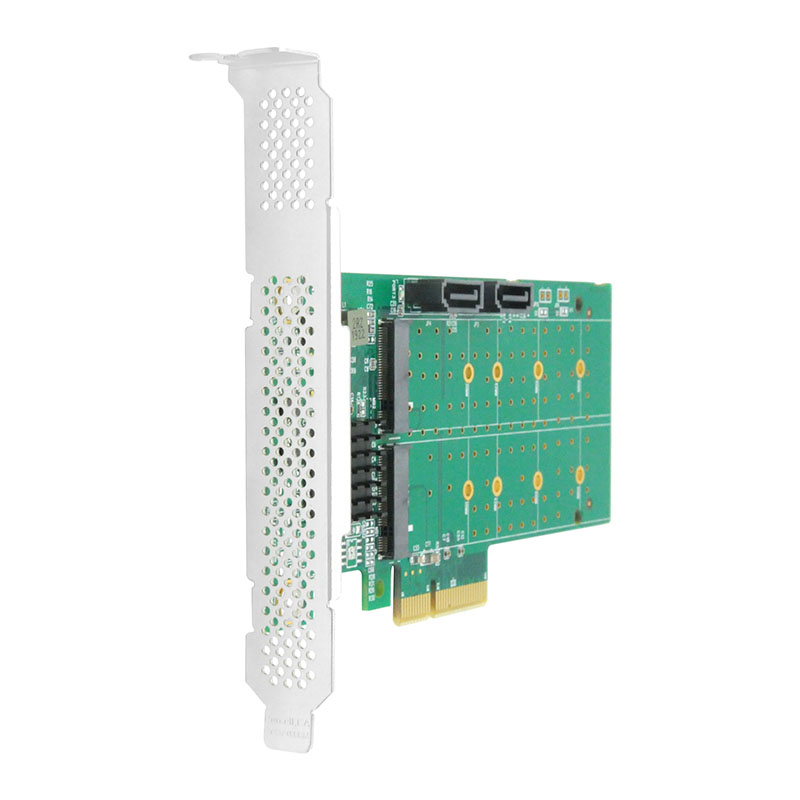

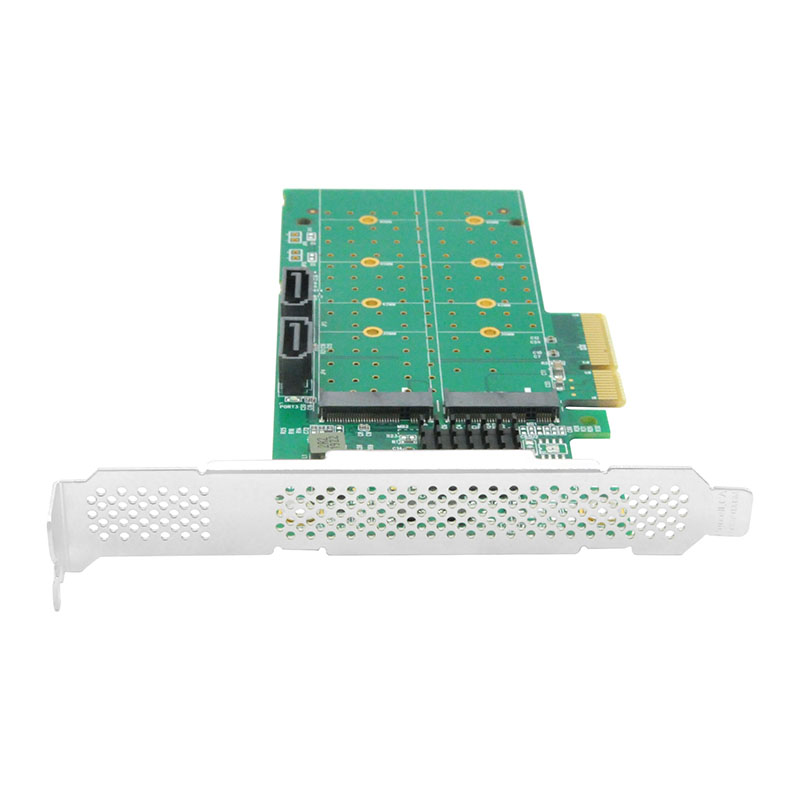

LRST9615-2M2S 6Gb/s PCIe x4 to 2-Port M.2 + 2-Port SATA

Product number: LRST96152M2S

Views:772Times

Tags：

Product Model:LRST9615-2M2S
Product Name:Dual 6Gb/s PCIe x4 to M.2 SATA 3 Expansion Card
Chipset:Marvell 88SE9215
Interface Type:2*M.2&2*SATA Connectors
Support Equipment:4*SATA SSD 6Gb/s
Host Bus Type:PCIe 2.0 x4

Overview
Parameter
Related Products

LRST9615-2M2S is developed on the basis of the chip scheme MARVELL 88SE9215, it can extend SATA3.0 interfaces through PCIe interface of PC host.

Functional Characteristics

• Compliant with SATA3.0 Specification and PCIe2.0 Specifications.

• Supports communication speeds of 6.0Gbps, 3.0Gbps, and1.5Gbps.

• Supports hot-plugging and heat-exchanging.

• Compatible with SATA 6G, 3G and 1.5G hard disk drives.

• Supports programmable transmission signal level.

• Supports Gen1i, Gen 1X, Gen2i, Gen 2m, Gen2X ,Gen3i.

• Supports 4 SATA ports.

• Supports AHCI 1.0 and IDE programming interface.

• Supports Native Command Queuing(NCQ).

• Supports Message Signaled Interrupt(MSI).

• Supports Port Multiplier FIS-based switching or command-based switching.

• Supports Control, Bulk, Stream, Interrupt, Isochronous.

• Supports Partial and Slumber Power Management states.

Host Interface

PCIe x4 channel,Compatible with PCIe x8, PCIe x16 slot

Skinny version adapter card(support 2U,3U metal case)

HARDWARE
Model	LRST9615-2M2S
I/O Controller	MARVELL 88SE9215
Bus Type	PCI Express 2.0
Compatible Device Type	4 SATA SSDs
Interface	2M.2&2SATA
CONNECTOR(S)
Device Connector	2M.2 B-Key &2SATA
Host Connector	PCIe x4
ENVIRONMENTAL
Humidity	0% – 90%
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 65°C (14°F to 149°F)
PHYSICAL CHARACTERISTICS
Dimension	137mm*69mm
Product Weight	170g
WARRANTY INFORMATION
Warranty	2 Years
WHAT'S IN THE BOX
Included in Package	1 - PCI Express to M.2 SATA3 Adapter
	1 - Low-profile bracket
	1 - Full-profile bracket (installed)
	2- Screw & Nut for SSD
