BackHome - Product - SATA/SAS Controller Card - SAS RAID Card

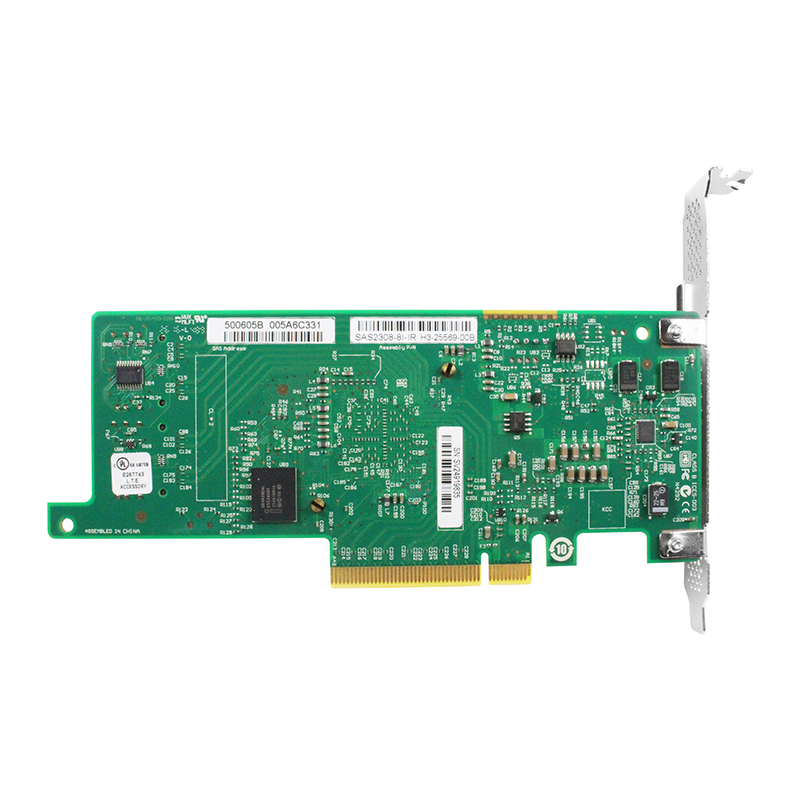

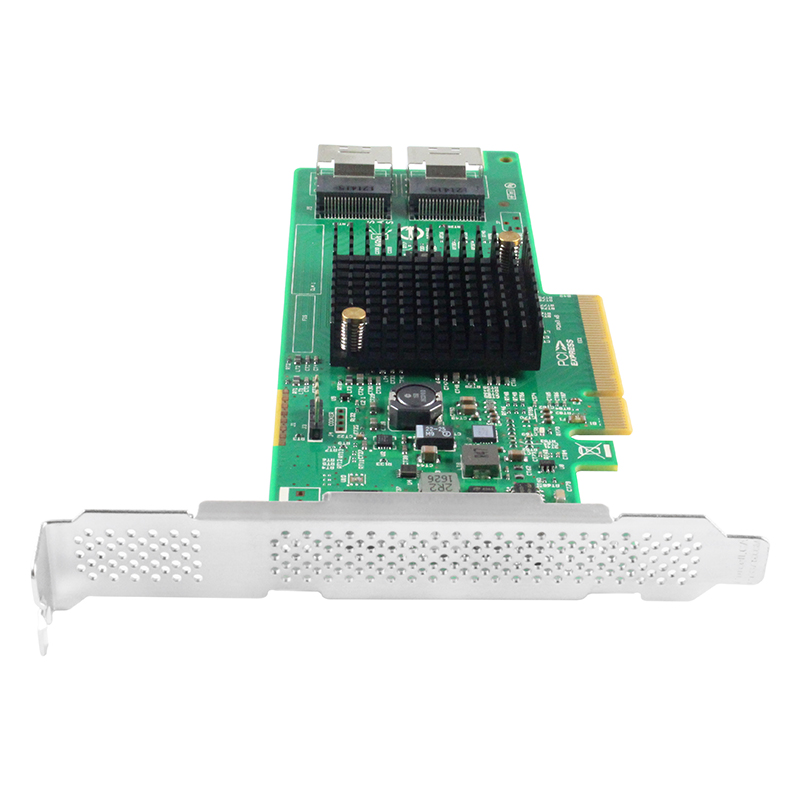

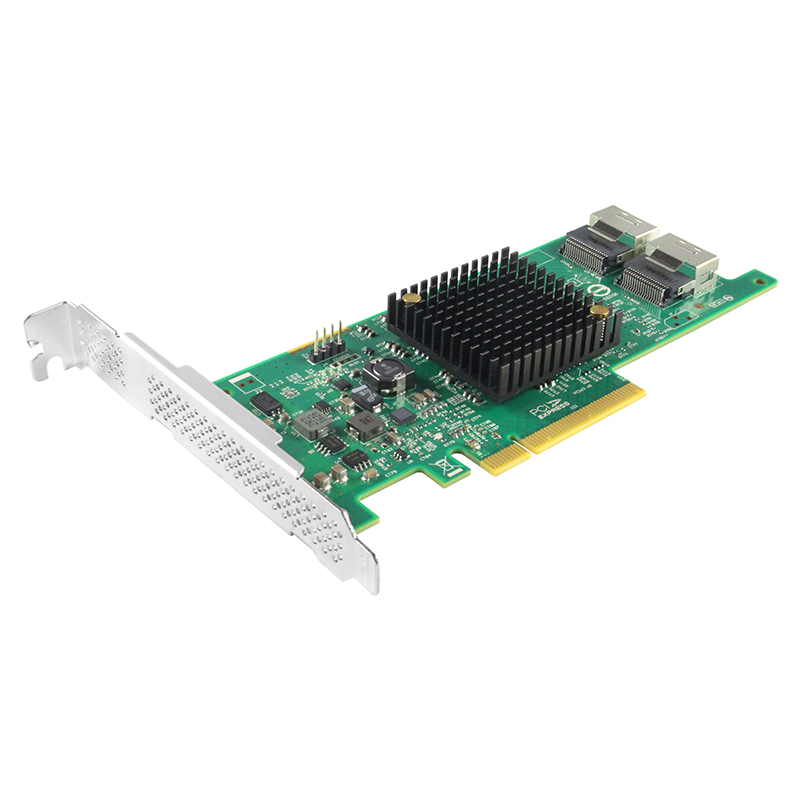

LRSA9638-8IR 6Gb PCIe x8 to 8-Port SAS/SATA

Product number: LRSA96388IR

Views:826Times

Tags:

Product Model:LRSA9638-8IR
Product Name:8 Port PCIe x8 to SFF-8087 6Gb/s RAID Card
Main Chipset:LSI SAS 2308
Interface Type:2*4Mini-SAS(SFF-8087)
Support Equipment: 8*6Gb/s SAS
RAID Level:RAID 0、1、10 and 1E
  • Overview
  • Parameter
  • Related Products

Features

8 internal 6Gb/s SAS+SATA ports

8 lanes, PCI Express 3.0

Low profile form factor design

Offers integrated RAID 0, 1, 1E and 10

Two x4 internal mini-SAS connectors (SFF8087)

Connect up to 256 SATA or SAS drives.

Supports SSDs, HDDs and tape drives

Host Bus Type

Host Interface

Eight  lane of PCI Express 3.0

Device Interface

 2*Mini-SAS (SFF-8087) connector (internal)

Physical Dimension

Form Factor

Full height, half length

Board Dimension

168mm x69mm

Net Weight

137g

Device Support

Type/ Q'ty

Up to 256 SATA or SAS devices

Supported RAID

Hardware RAID

RAID 0, 1, 1E and 10

Operating System

OS supported list

Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD

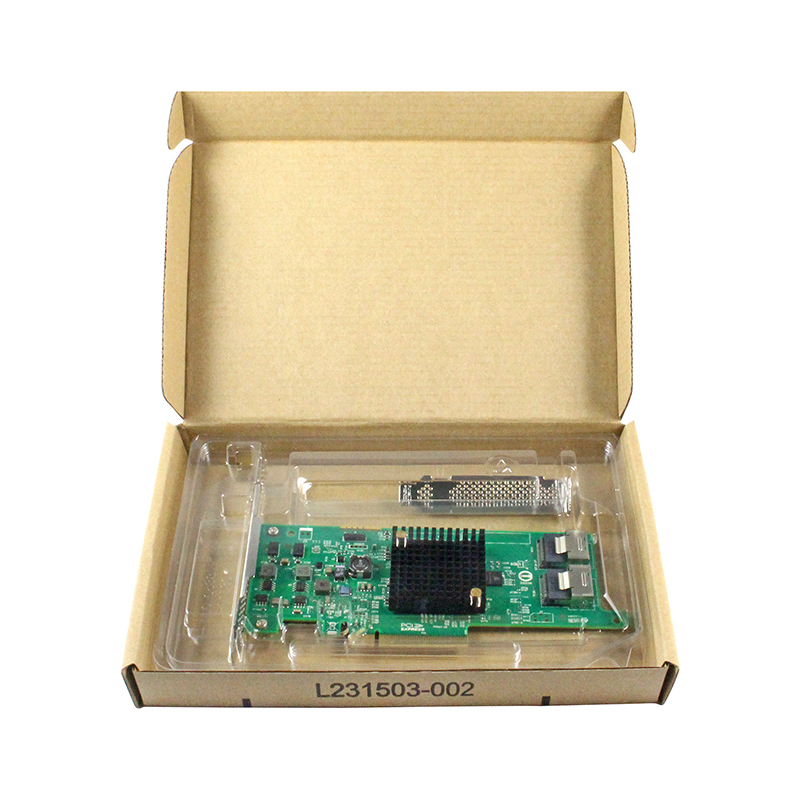

Package

Card

LRSA9638-8IR
