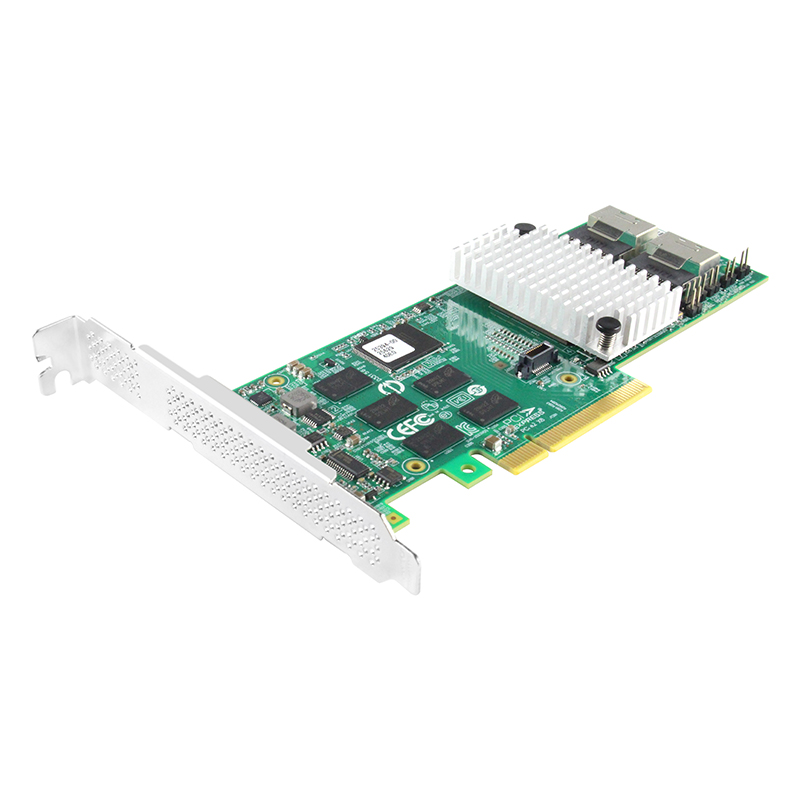

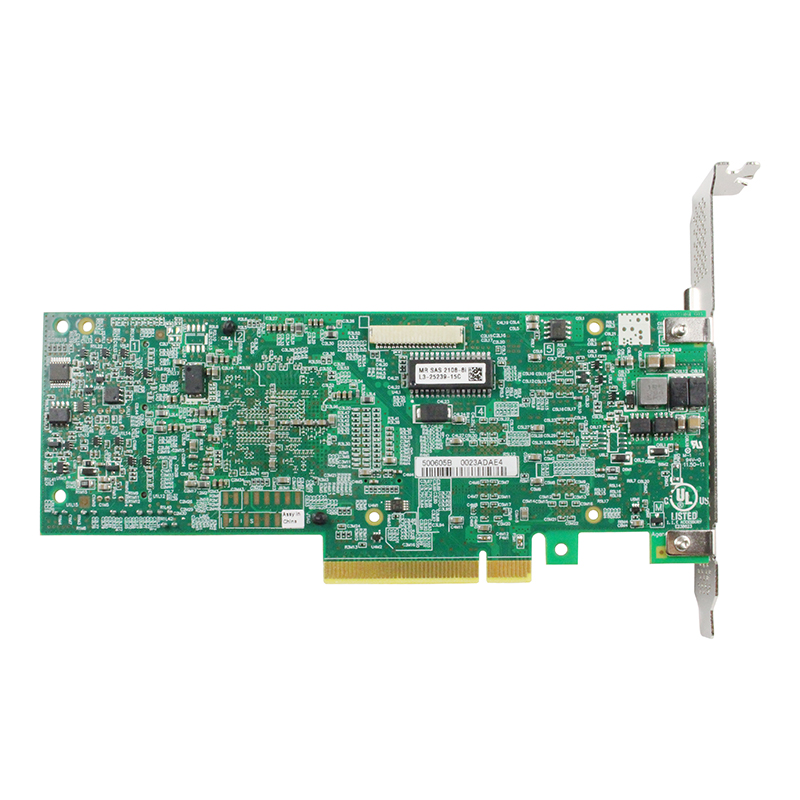

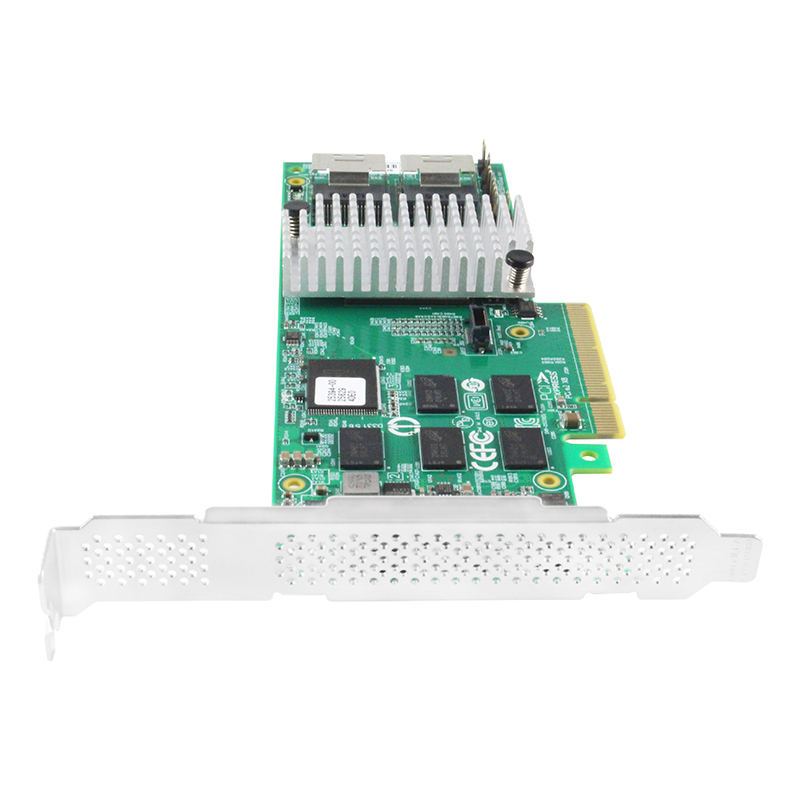

LRSA9618-8IR 6Gb PCIe x8 to 8-Port SAS/SATA RAID Controller

Product number: LRSA96188IR

Views:451Times

Tags:

Product Model:LRSA9618-8IR
Product Name:8 Port PCIe x8 to SAS 6Gb/s RAID Card
Main Chipset:LSI SAS 2108
Interface Type:2*4Mini-SAS(SFF-8087)
Supported Equipment: 8*SAS/SATA/SSD 6Gb/s
RAID:0,1,5,6
  • Overview
  • Parameter
  • Related Products

Features

  • Compliant with x8 lane PCI Express 2.0
  • Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.
  • Integrated RAID 0, 1, 1E and 10
  • Supports eight internal 6Gb/s SAS ports.
  • Connect up to 256 SATA or SAS drives.

Host Bus Type

Host Interface

Eight lane of PCI Express 2.0

Device Interface

2*Mini-SAS (SFF-8087) connector (internal)

Physical Dimension

Form Factor

Full height, half length

Board Dimension



Net Weight



Device Support

Type/ Q'ty

Up to 256 SATA or SAS devices

Supported RAID

Hardware RAID

RAID 0/1/5/6/10/50/60

Operating System

OS supported list

Microsoft Windows, Linux (SuSE , Red Hat), Solaris, VMware, FreeBSD

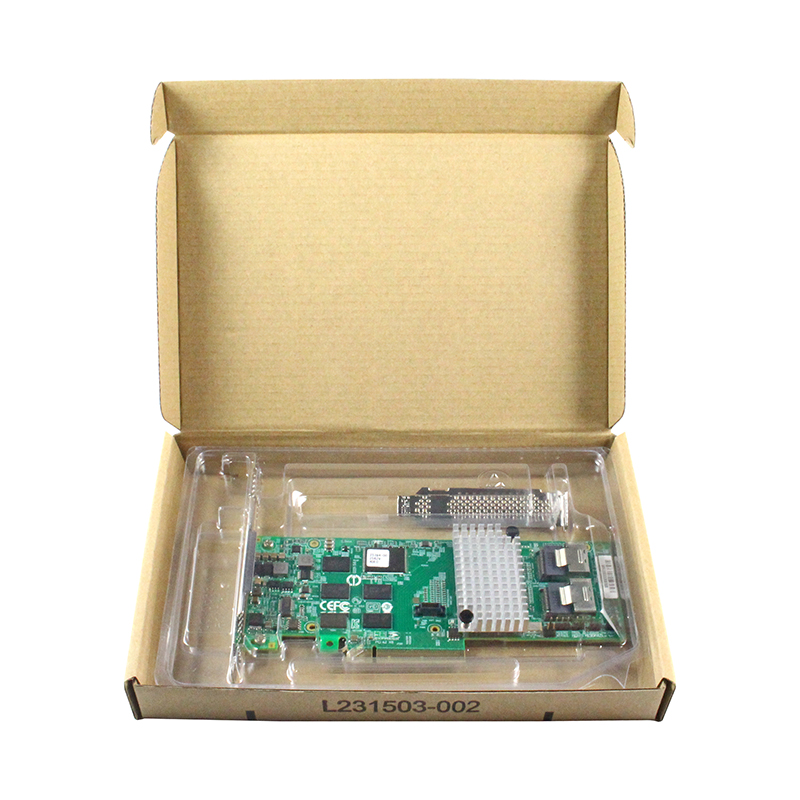

Package

Card

LRSA9618-8IR
