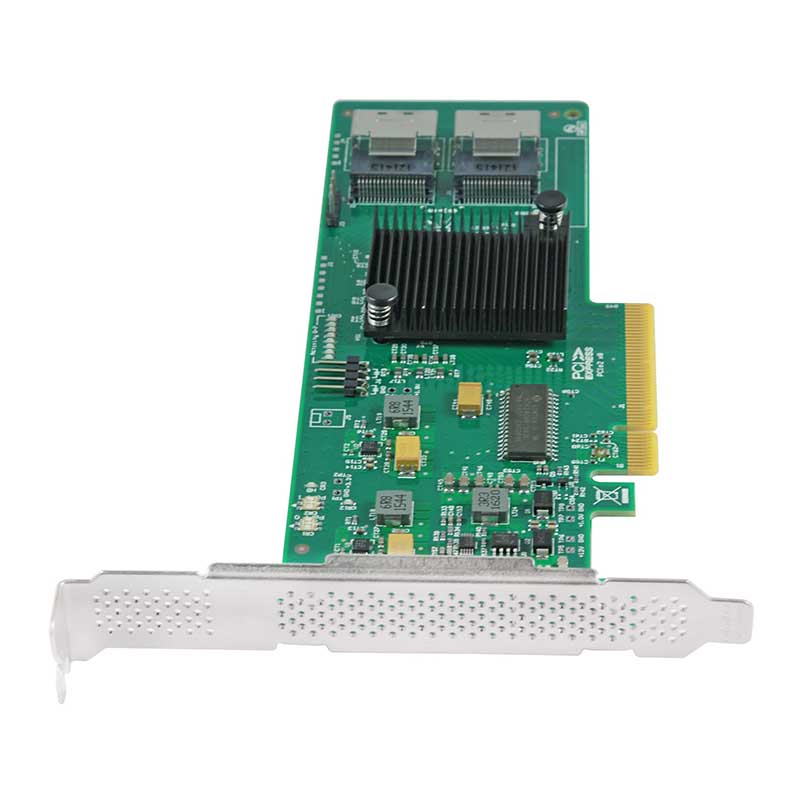

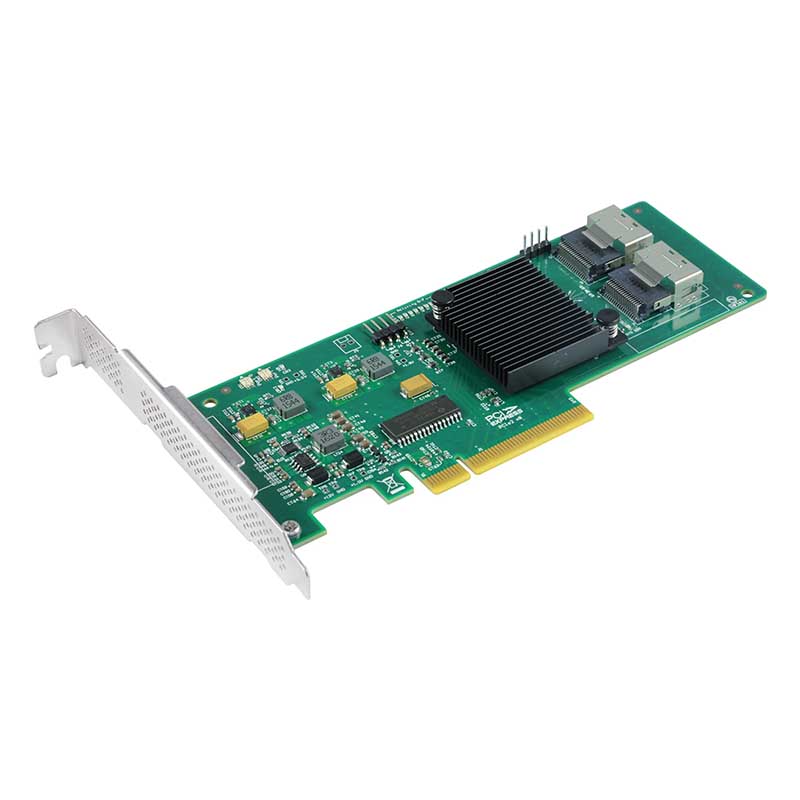

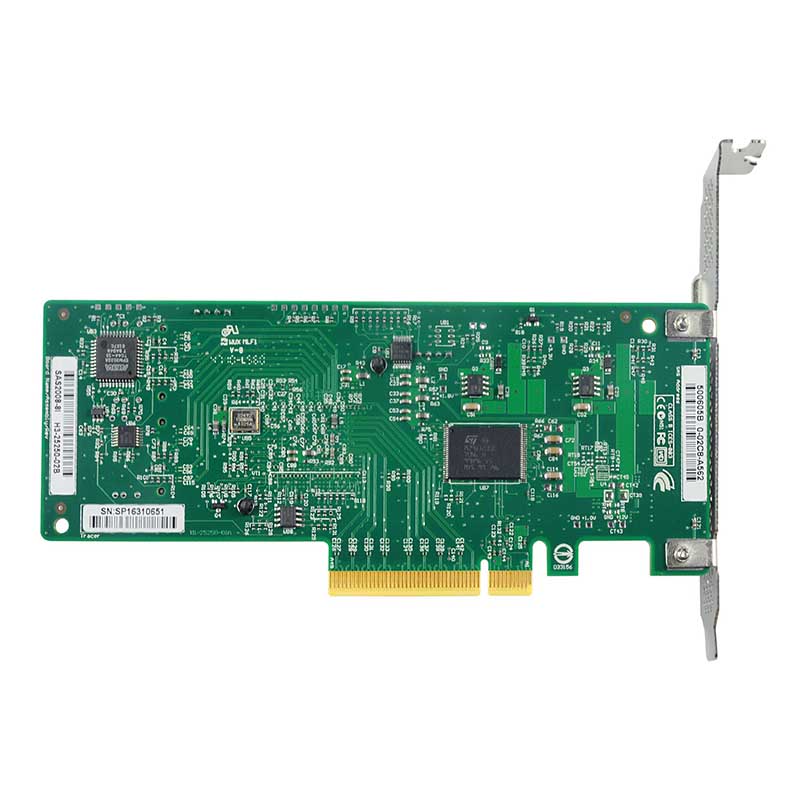

LRSA9608-8IR 6Gb PCIe x8 to 8-Port SAS/SATA RAID Controller Card

Product number: LRSA96088IR

Views:702Times

Tags:

Product Model:LRSA9608-8IR
Product Name:8 Port PCIe x8 to SAS/SATA RAID Card
Main Chipset: LSI SAS2008
Interface Type:2*Mini-SAS(SFF-8087)
Support Equipment: 8*SATA/SAS connectors
RAID Level :RAID 0, 1, 1E,5,10 and JBOD
  • Overview
  • Parameter
  • Related Products

LRSA9608-8IR host bus adapter provides the greatest available throughput to internal server storage arrays through four internal 6Gb/s ports, driving up to 16 SAS and SATA physical devices. This HBA offers dynamic SAS functionality including dual-port drive redundancy and SATA compatibility. Utilizing one internal x8 SFF8087 Mini-SAS connector, the low-profile LRSA9608-8IR is an excellent fit for 1U and 2U servers.

Compliant with x8 lane PCI Express 2.0

Supports communication speeds of 6 Gbps, 3 Gbps, and 1.5 Gbps.

Integrated RAID 0, 1, 1E ,10 and JBOD

Supports eight internal 6Gb/s SAS ports.

Connect up to 8 SATA or SAS drives.

HARDWARE

Model

LRSA9608-8IR

Number of Device

2 internal

I/O Controller

SAS 2008

Bus Type

PCI Express

Compatible Device Type

Eight internal 6GB/s SATA+SAS Devices

Interface

PCI Express

CONNECTOR(S)

Device Connector

Two x4 Mini-SAS internal connectors (SFF8087)

Host Bus

PCI Express x8

ENVIRONMENTAL

Humidity

5% ~ 90%

Operating Temperature

10°C to 55°C

Storage Temperature

-40°C to 70°C

PHYSICAL CHARACTERISTICS

Dimension

167.60mm*68.90mm

Product Weight

182.5g

WARRANTY INFORMATION

Warranty

1 Year

WHAT'S IN THE BOX

Included in Package

1 - 8 Port PCIe x8 to SAS/SATA RAID Card

1 - full-height bracket (installed)

1 - Low Profile Bracket
