Product number: LRSA96088IPCIex8to8PortSASSATA
Views:443Times
Tags:

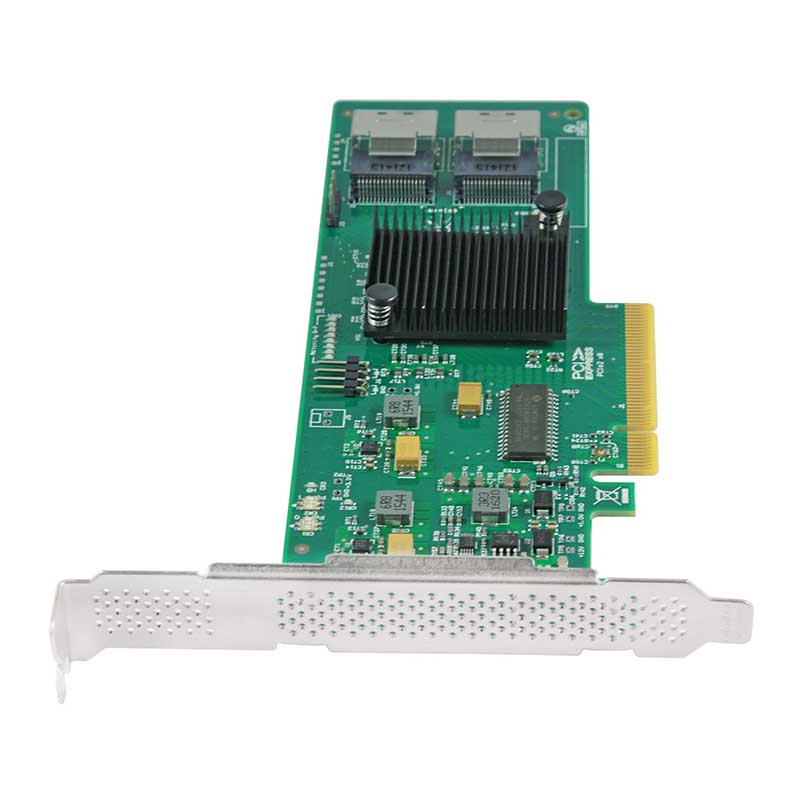

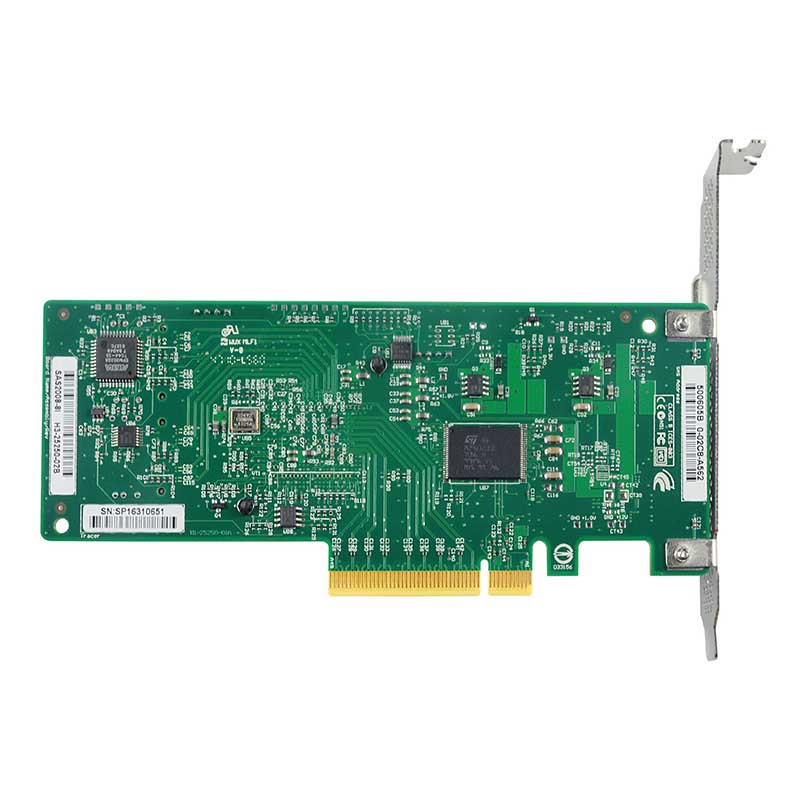

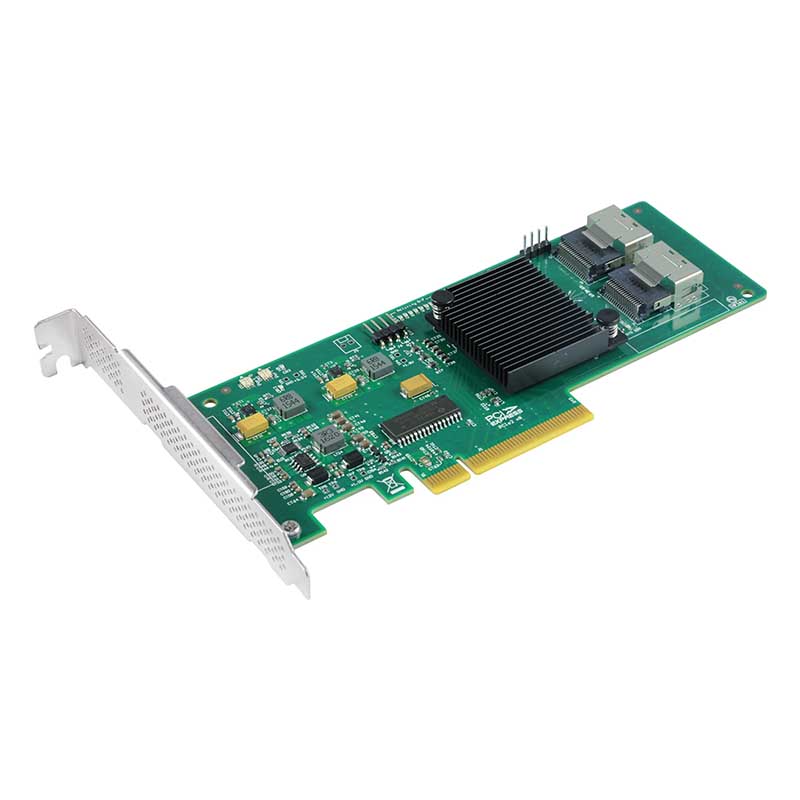

The LRSA9608-8I is used in PCS, servers, IPC, storage devices, and communication applications.
PCIe Features
Support 4 channels
Comply with PCIe 2.0 specification
Supports communication speeds of 2.5 Gbps and 5.0 Gbps
SATA features
Support SAS/SATA HDDS and SSDS
Comply with SATA specification 3.1
Support 6.0 Gbps, 3.0 Gbps, 1.5 Gbps communication speed
Support 8 SATA ports
|
HARDWARE |
|
|
Model |
LRSA9608-8I |
|
Number of Device |
2 internal |
|
I/O Controller |
SAS 2008 |
|
Bus Type |
PCI Express |
|
Compatible Device Type |
Eight internal 6GB/s SATA+SAS Devices |
|
Interface |
PCI Express |
|
CONNECTOR(S) |
|
|
Device Connector |
Two x4 Mini-SAS internal connectors (SFF8087) |
|
Host Bus |
PCI Express x8 |
|
ENVIRONMENTAL |
|
|
Humidity |
5% ~ 90% |
|
Operating Temperature |
10°C to 55°C |
|
Storage Temperature |
-40°C to 70°C |
|
PHYSICAL CHARACTERISTICS |
|
|
Dimension |
167.60mm*68.90mm |
|
Product Weight |
182.5g |
|
WARRANTY INFORMATION |
|
|
Warranty |
1 Year |
|
WHAT'S IN THE BOX |
|
|
Included in Package |

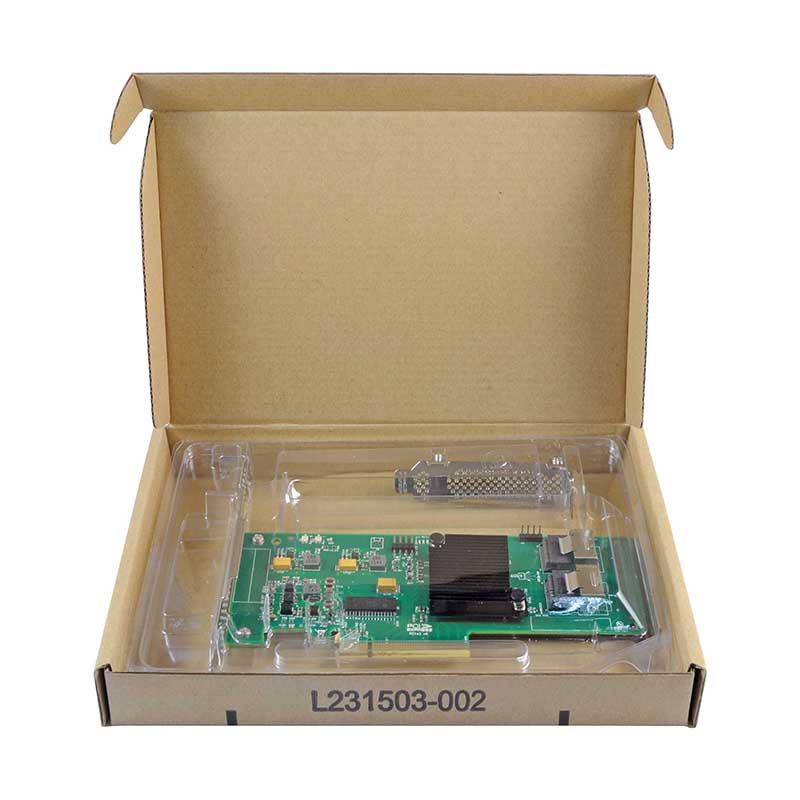

1 - 8 Port PCIe x8 to SAS/SATA RAID Card 1 - full-height bracket (installed) 1 - Low Profile Bracket |
