Product number: LRUA8254232
Views:1207Times
Tags:

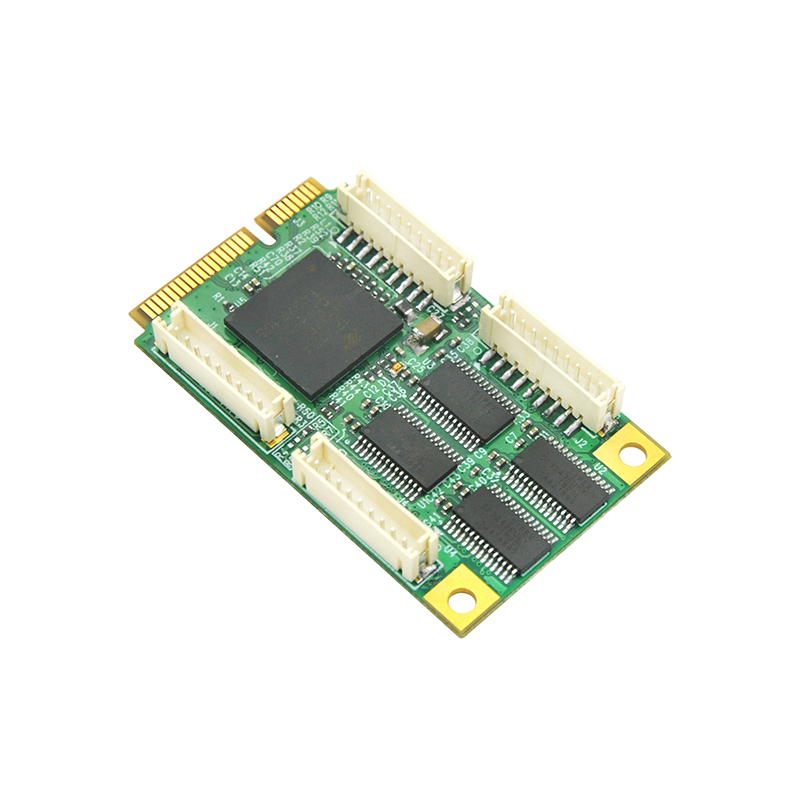

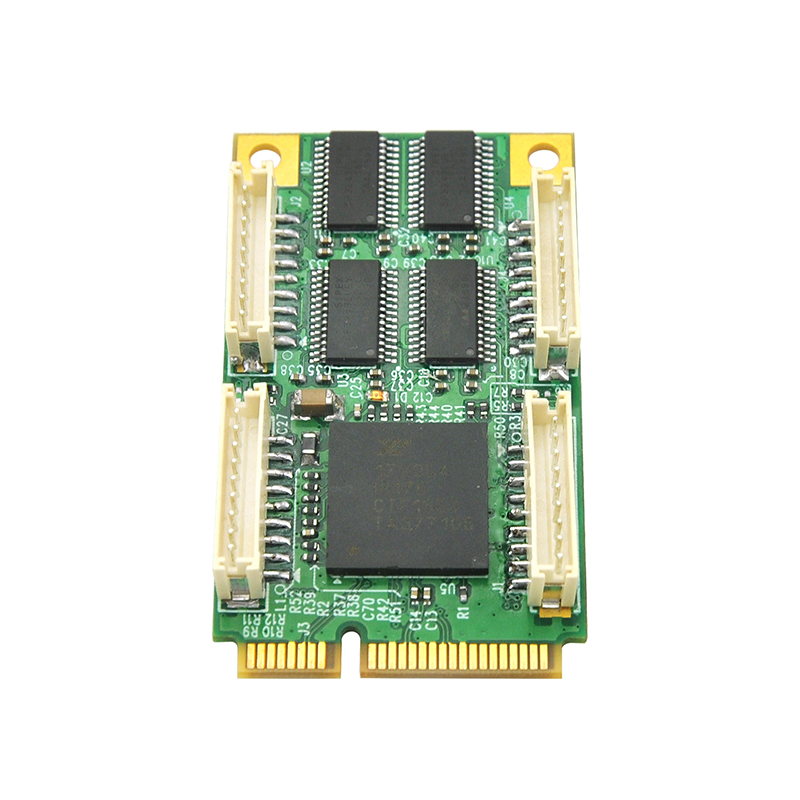

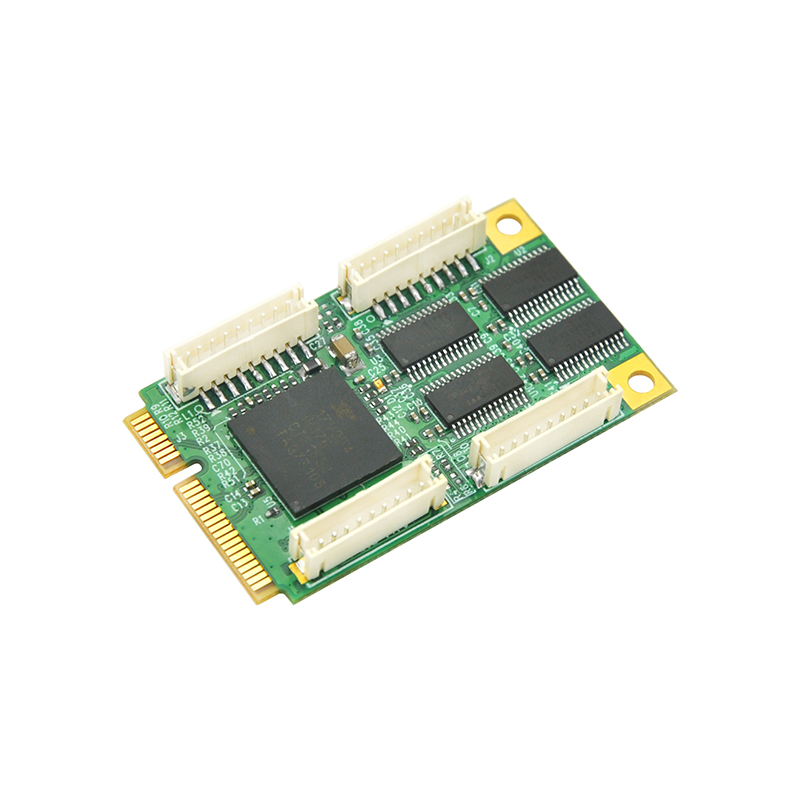

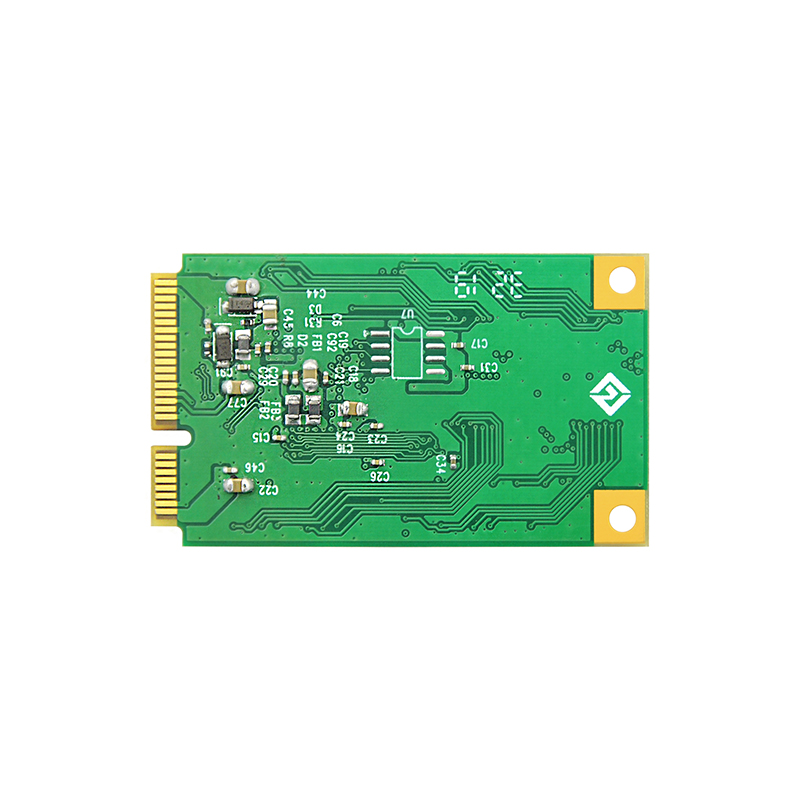

Product LRUA8254-232 uses EXAR 17v354 chipset solution to expand 4 RS-232 Serial ports(DB9 Pin) through Mini PCIe slot. It can connect 4 RS-232 Serial devices at the same time to provide modulation and control signals so to ensure the compatibility of peripheral equipments. It provides cost-effective, high speed and stable solutions to customers.
Spec:
Support PCIe2.0 Gen 1
Adopt Mini PCIe connector, small in size with excellent transmission performance
4 standard RS-232 serial ports, each can reach to 921.6Kbps
Multi-port serial devices communication through 4 DB9 Pin cables
256Byte of TX and RX FIFO, On-board hardwares, softwares flow control and burst datagram
Support Windows, XP, Vista, Linux and so on
Application:
Widely used in POS Systems, Serial Port Net, Printer, Industrial Control, Automation Systems and other Serial Devices.|
Product Name |
Mini PCIe to 4-Port RS-232 Serial Card |
|
Product Model |
LRUA8254-232 |
|
I/O Controller |
XR17V354 |
|
Connector |
4*DB9PIN RS-232 connector |
|
Host Bus Type |
Mini PCIe |
|
Power Supply |
3.3V |
|
Humidity |
15%~ 90% |
|
OperatingTemperature |
5°C - 50°C (-41°F - 122°F) |
|
Storage Temperature |
-25°C ~70°C (-13°F ~ 158°F) |
|
Dimension |
30mmX51mm |
|
Weight |
6.6g |
|
Item List |
Mini PCIe to 4-Port RS-232 Serial Card |
