Product number: LRUA8252232
Views:450Times
Tags:

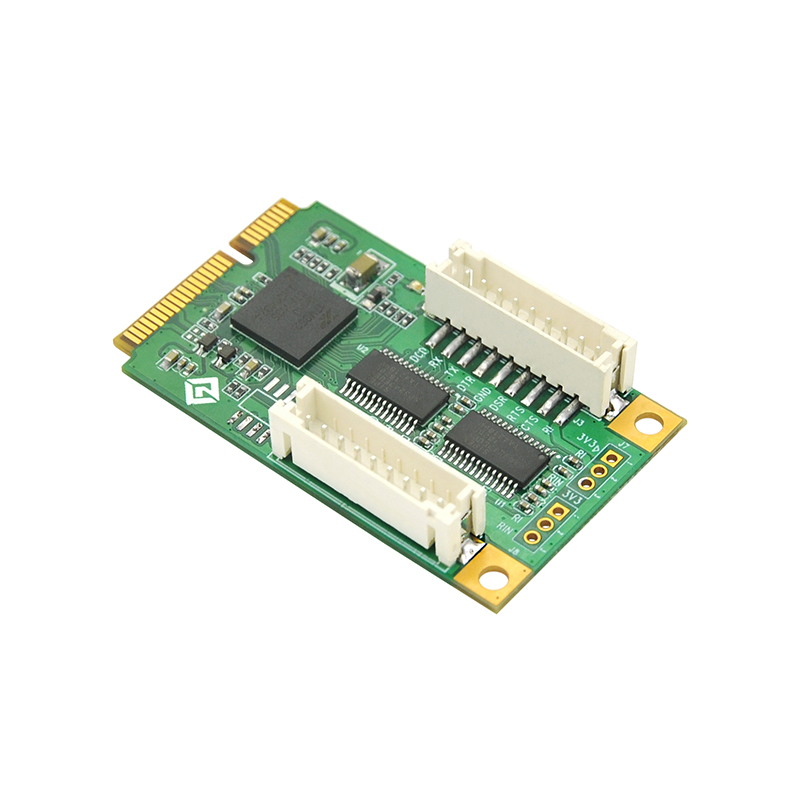

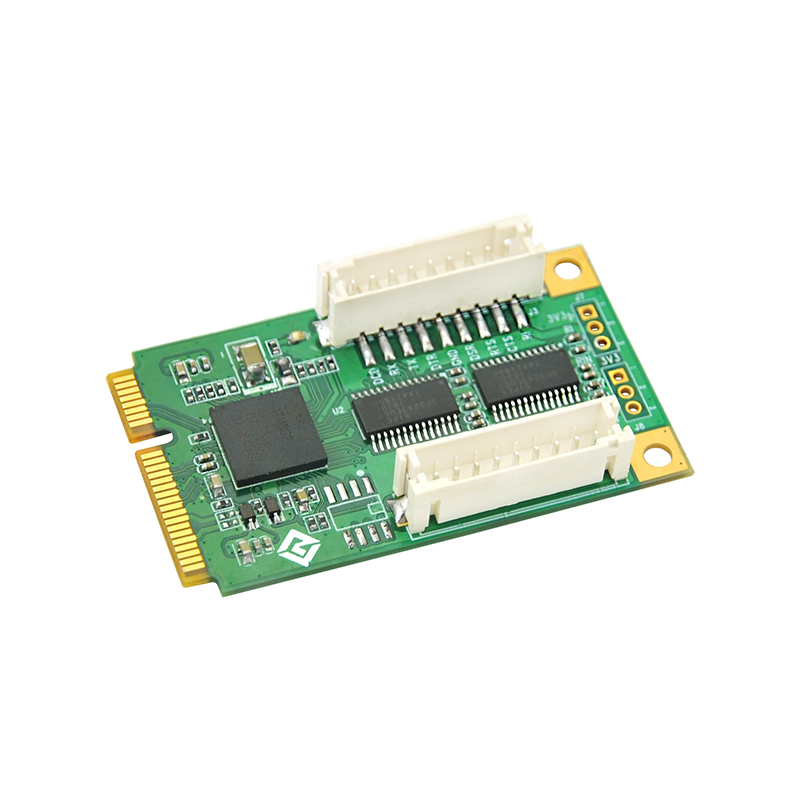

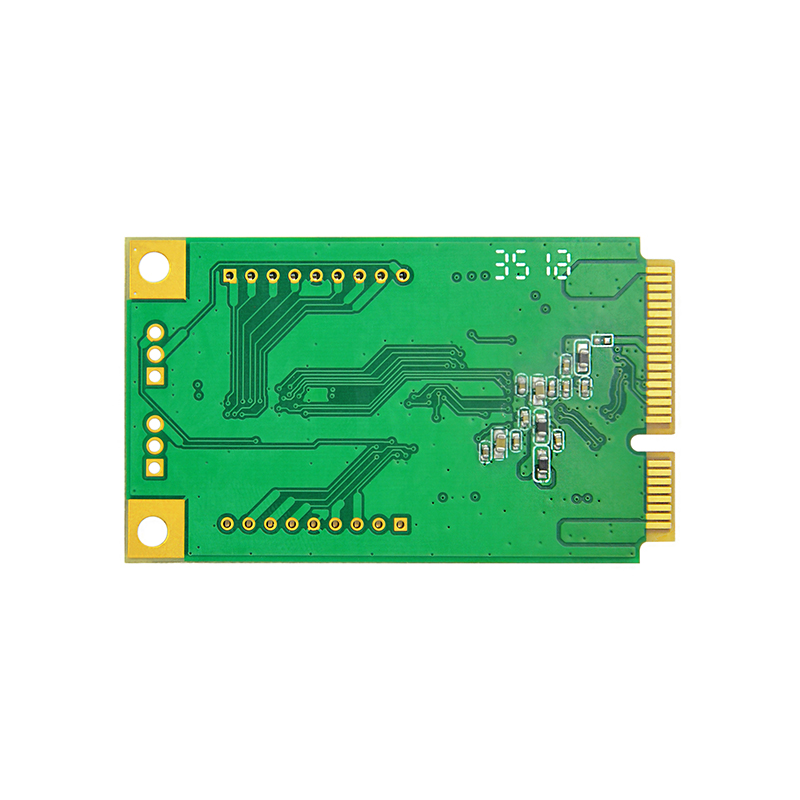

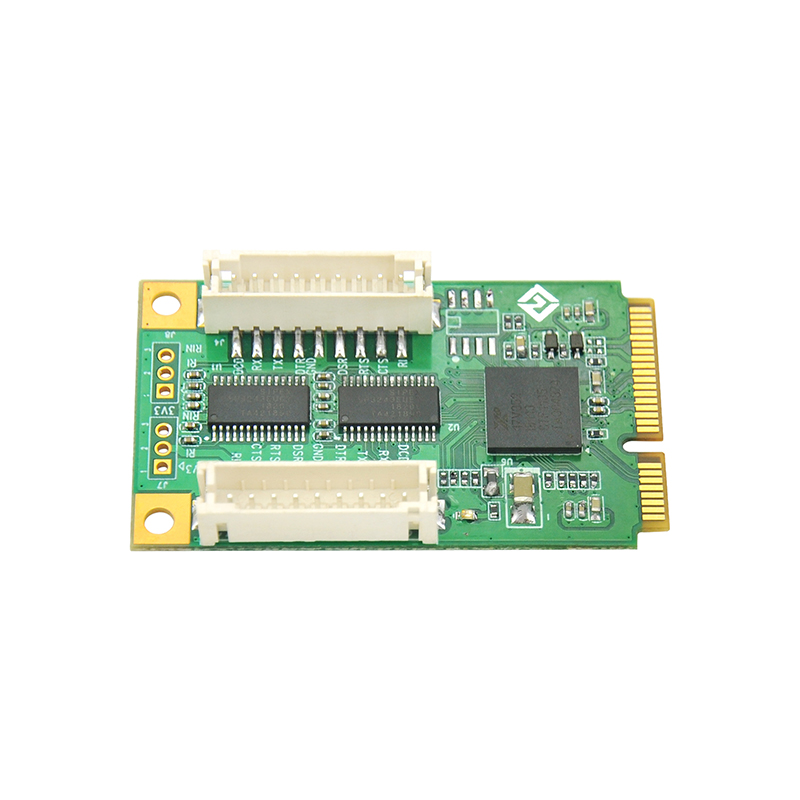

Product LRUA8252-232 uses EXAR 17v352 chipset solution to expand 2 RS-232 Serial ports(DB9 Pin) through Mini PCIe slot. It can connect 2 RS-232 Serial devices at the same time to provide modulation and control signals so to ensure the compatibility of peripheral equipments. It provides cost-effective, high speed and stable solutions to customers.
Spec:
Support PCIe2.0 Gen 1
Adopt Mini PCIe connector, small in size with excellent transmission performance
2 standard RS-232 serial ports, each can reach to 921.6Kbps
Multi-port serial devices communication through 2 DB9 Pin cables
256Byte of TX and RX FIFO, On-board hardwares, softwares flow control and burst datagram
Support Windows, XP, Vista, Linux and so on
Application:
|
HARDWARE |
|
|
Product Model |
LRUA8252-232 |
|
I/O Controller |
XR17V352 |
|
Connector |
2*DB9Pin RS232 connector |
|
Host Bus Type |
Mini PCIe |
|
Power Supply |
3.3V |
|
Humidity |
15%~ 90% |
|
Operating Temperature |
5°C - 50°C (-41°F - 122°F) |
|
Storage Temperature |
-25°C ~70°C (-13°F ~ 158°F) |
|
Dimension |
51mmX30mm |
|
Weight |
6.6g |
|
WHAT'S IN THE BOX |
|
|
Included in Package |
1 - Mini PCIe to 2-Port RS-232 Serial Card |
