LRNV94NF 4 xU.2 to PCIe x16 Adapter for 2.5

Product number: LRNV94NF

Views:563Times

Tags：

Product Model:LRNV94NF

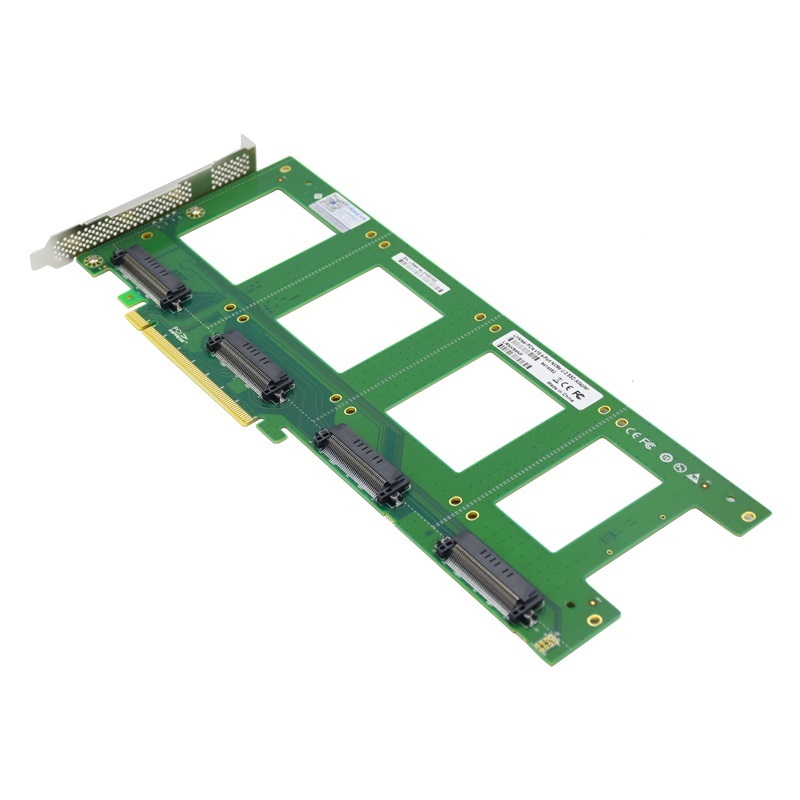

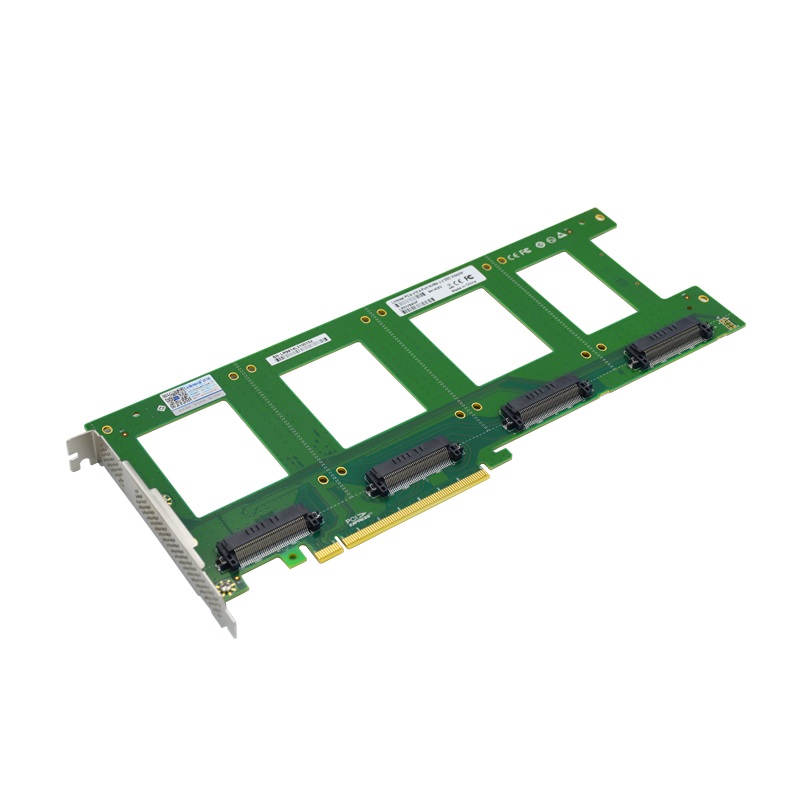

Product Name:4 U.2 to PCIe x16 Adapter for 2.5" U.2 NVMe SSD
Interface:4 68-pin SFF-8639 interface connector
Support Equipment:4 PCIe U.2 NVMe SSD
Host Bus Type: PCIe 3.0 x16
PS: The motherboard without PCIE signal split can only recognize one disk.

Overview
Parameter
Related Products

Features:

1.U.2 SFF-8639 four-disks design, Stable installation, Can run Four U.2 disks at full speed at the same time.

2.Built-in multiple sets of high-power DC modules for sustainable and stable work.
3.The innovative design can accommodate four U.2 of the chassis, and can support simultaneous operation.
4.The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
5.No driver installation required, Support Windows 10/8, Server 2012 R2, Linux, etc.
6.Fully Rohs, FCC and CE Compliant.

HARDWARE
Model	LRNV94NF
Interface	PCI Express x16
Compatible Drive	4*U.2 (PCIe NVMe SSD, SFF-8639)
CONNECTOR(S)
Drive Connector	4*68-pin SFF-8639 interface connector
ENVIRONMENTAL
Humidity	15% ~ 90%
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Product Dimension	286mm X122.50mm
Product Weight	115g
Shipping Weight	5.64 oz [160 g]
WARRANTY INFORMATION
Warranty	2 Years
WHAT'S IN THE BOX
Included in Package	1 - PCIe to 4 xU.2 Adapter For 2.5" NVMe SSD
	1 - Full-Height Bracket(Installed)
	16– Screw & Nut for SSD
