Product number: LRNV93242E2I2Externalportsand2
Views:253Times
Tags:
Features:
Compliant PCI Express Base Specification, r3.0 (compatible w/ PCIe r1.0a/1.1&2.0).
Compliant with PCI Power Management Spec, r1.2.
Microsoft Vista Compliant.
Supports Access Control Services.
High Performance. Non-blocking switch fabric, Full line rate on all ports.
Quality of Service. Eight traffic classes per port.
Reliability, Availability, Serviceability.
Applications
Suitable for host-centric as well as peer-to-peer traffic patterns, the LRNV9324 can be configured for a variety of graphics applications.
Operating System Support
Operating System: RedHat, Suse, Microsoft Windows, Vmware, MAC OSX, FreeBSD
|
HARDWARE |
|
|
Model |
LRNV9324-2E2I |
|
Number of Device |
2 External and 2 Internal |
|
I/O Controller |
PLX PEX8725 |
|
Bus Type |
PCI Express 3.0 |
|
Interface |
SFF-8643 and SFF-8644 |
|
CONNECTOR(S) |
|
|
Device Connector |
2*SFF-8643 and 2*SFF-8644 |
|
Host Bus |
PCI Express x8 |
|
ENVIRONMENTAL |
|
|
Humidity |
15% ~ 90% |
|
Operating Temperature |
5°C to 50°C (41°F to 122°F) |
|
Storage Temperature |
-25°C to 70°C (-13°F to 158°F) |
|
PHYSICAL CHARACTERISTICS |
|
|
Dimension |
160mm x 68.9mm |
|
Product Weight |
124g |
|
WARRANTY INFORMATION |
|
|
Warranty |
2 Years |
|
WHAT'S IN THE BOX |
|
|
Included in Package |

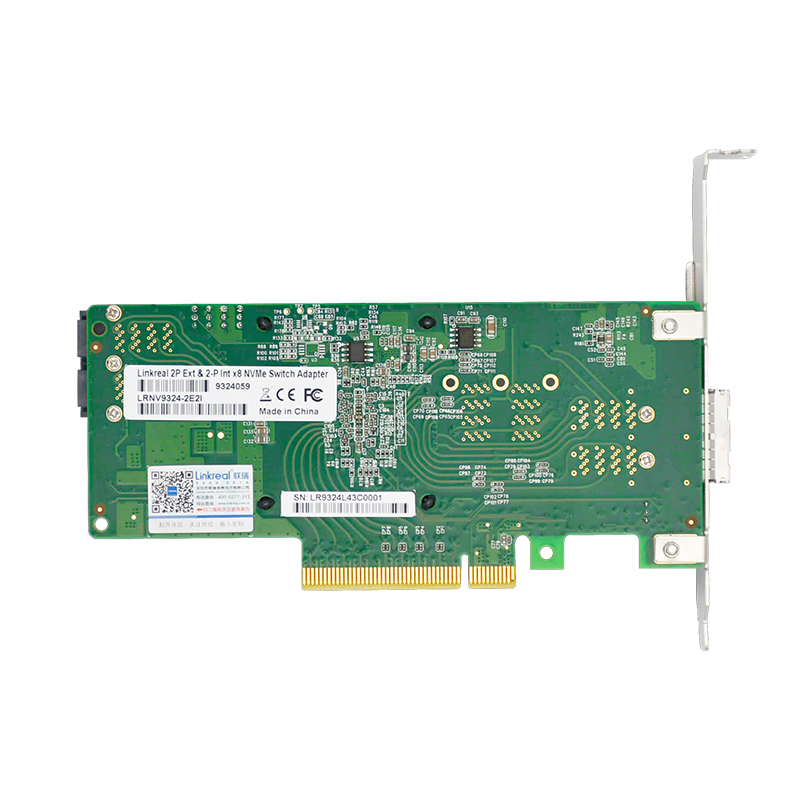

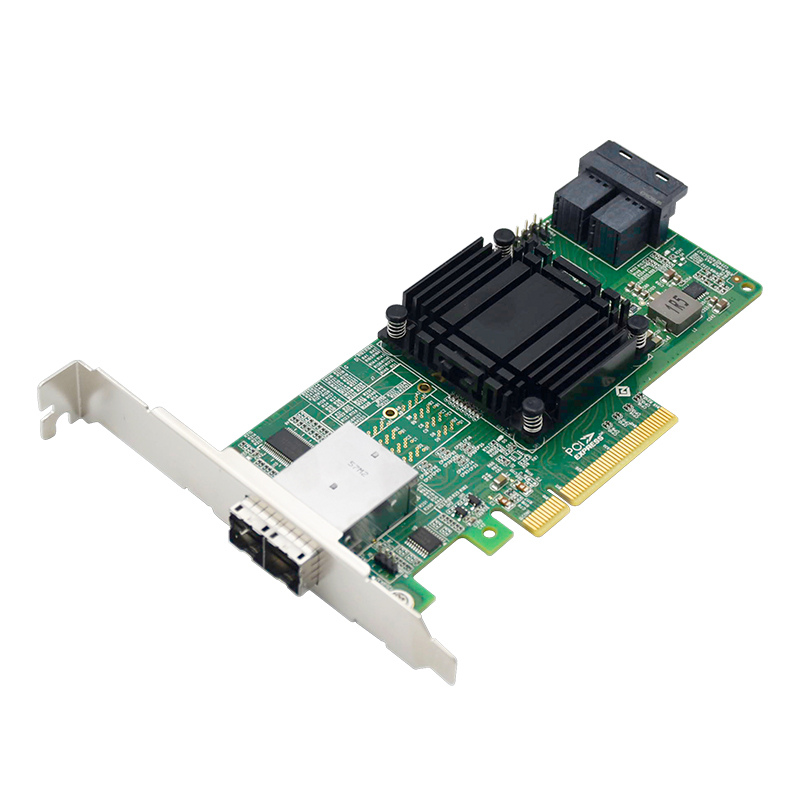

1 - LRNV9324-2E2I PCIe3.0 U.2 NVMe SSD Adapter 1 - full-height bracket (installed) 1 - low-profile bracket |
