LRNV94N8

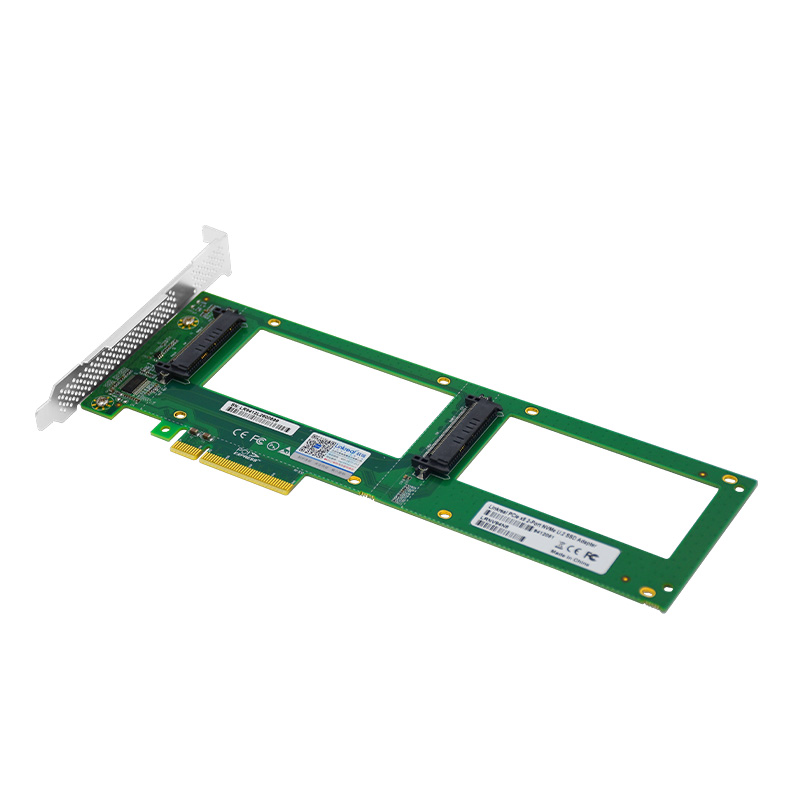

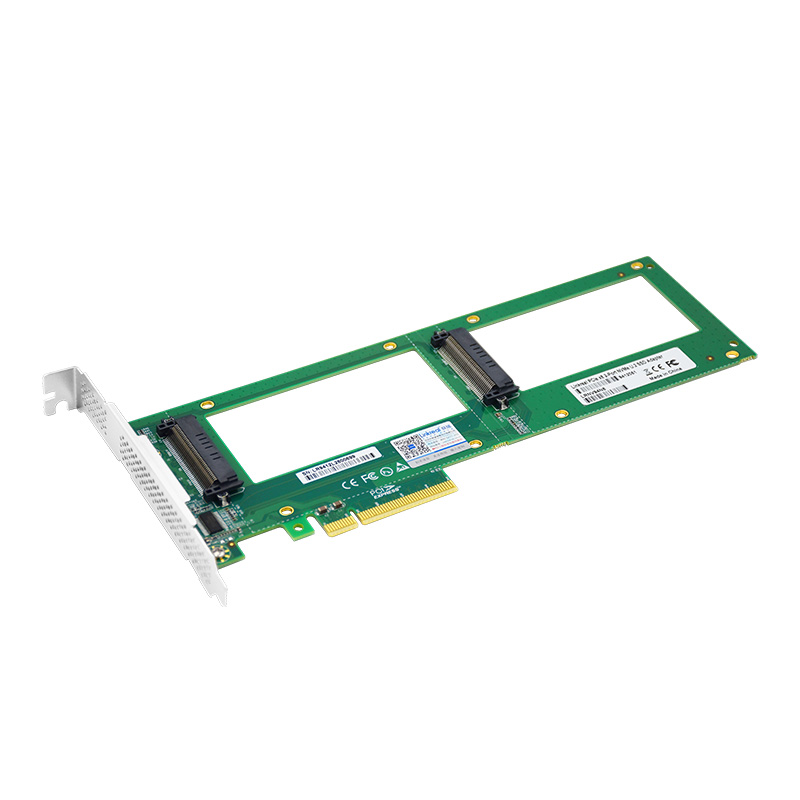

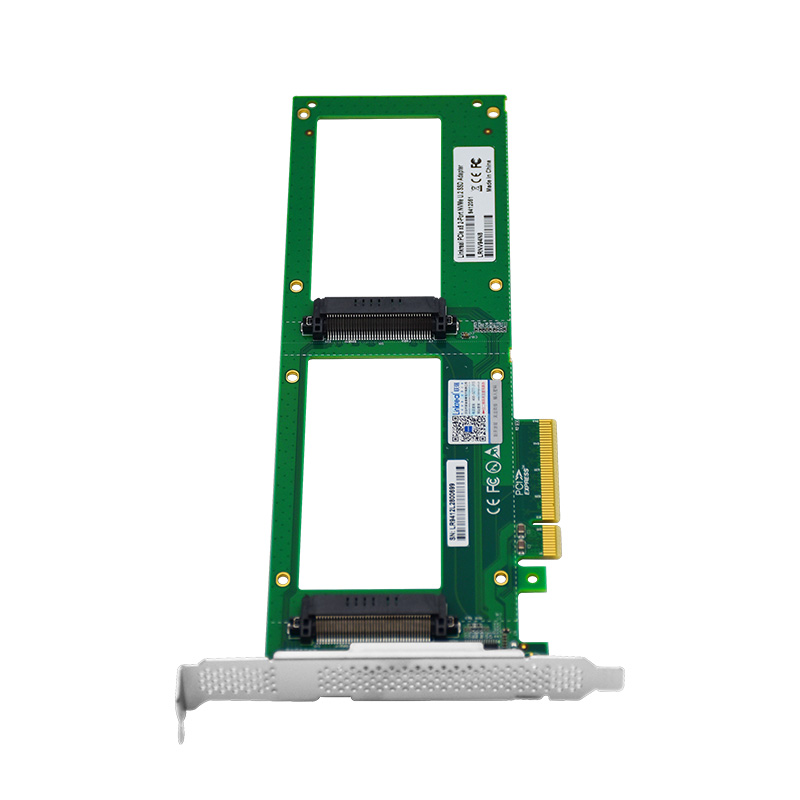

LRNV94N8 2X U.2 SFF-8639 SSD to PCI Express 3.0 Gen 3 X8 Card U.2 NVMe SSD Adapter

Product number: LRNV94N8

Views:671Times

Tags：LRNV94N8

Product Model: LRNV94N8
Product Name: 2*U.2 to PCIe x8 Adapter for 2*2.5" U.2 NVMe SSD
Interface:2*68-pin SFF-8639 interface connector
Support Equipment:2*PCIe U.2 NVMe SSD
Host Bus Type: PCIe 3.0 x8
PS: The motherboard without PCIe signal split can only recognize one disk.

Overview
Parameter
Related Products

Features:

1.Only supports motherboards with detachable PCI-E channels.Control the operation of two disks based on the motherboard PCIE channel,The motherboard without PCIE signal split can only recognize one disk.
2.U.2 SFF-8639 two-disks design, Stable installation, Can run two U.2 disks at full speed at the same time.
3.The innovative design can accommodate two U.2 of the chassis, and can support simultaneous operation.
4.The 2.5" NVMe U.2 SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
5. No driver installation required, Support Windows 10/8, Server 2012 R2, Linux, etc.
6.Fully Rohs, FCC and CE Compliant.

HARDWARE
Model	LRNV94N8
Interface	PCI Express x8
Compatible Drive	2*U.2 (PCIe NVMe SSD, SFF-8639)
CONNECTOR(S)
Drive Connector	2*68-pin SFF-8639 interface connector
ENVIRONMENTAL
Humidity	15% ~ 90%
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
PHYSICAL CHARACTERISTICS
Product Dimension	236mm X83.23mm
Product Weight	65g
Shipping Weight	3.88oz [110 g]
WARRANTY INFORMATION
Warranty	2 Years
WHAT'S IN THE BOX
Included in Package	1 - PCIe to 2*U.2 Adapter For 2.5" NVMe SSD
	1 - Full-Height Bracket(Installed)
	8– Screw & Nut for SSD
