LRNV9324-4I

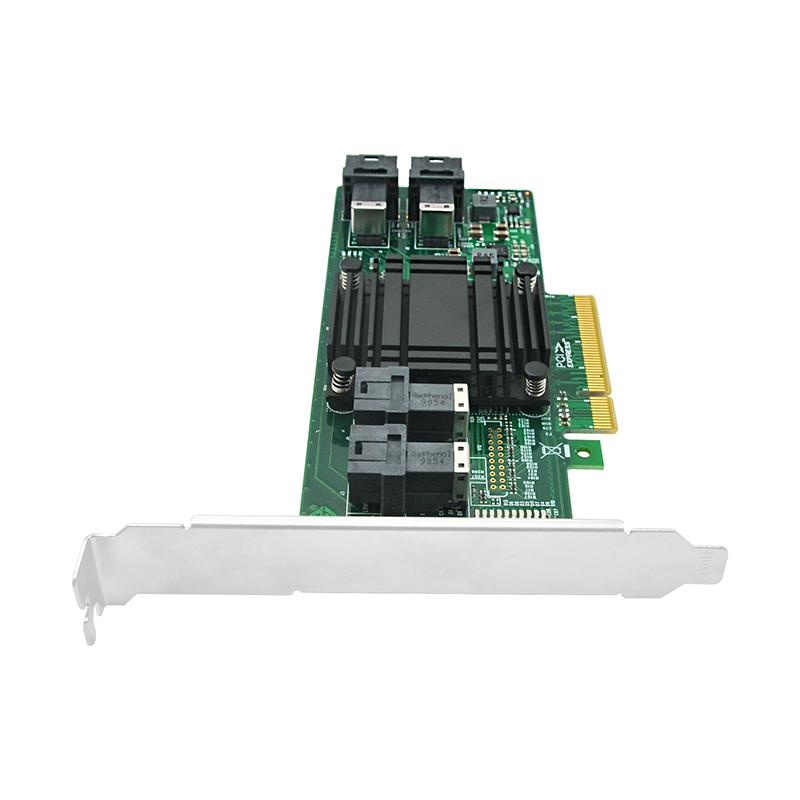

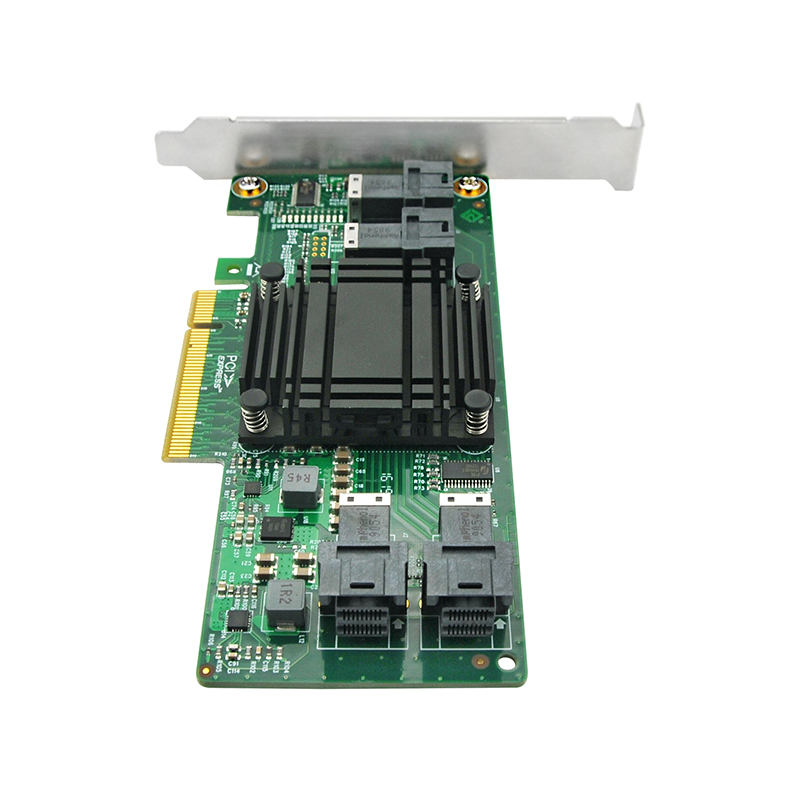

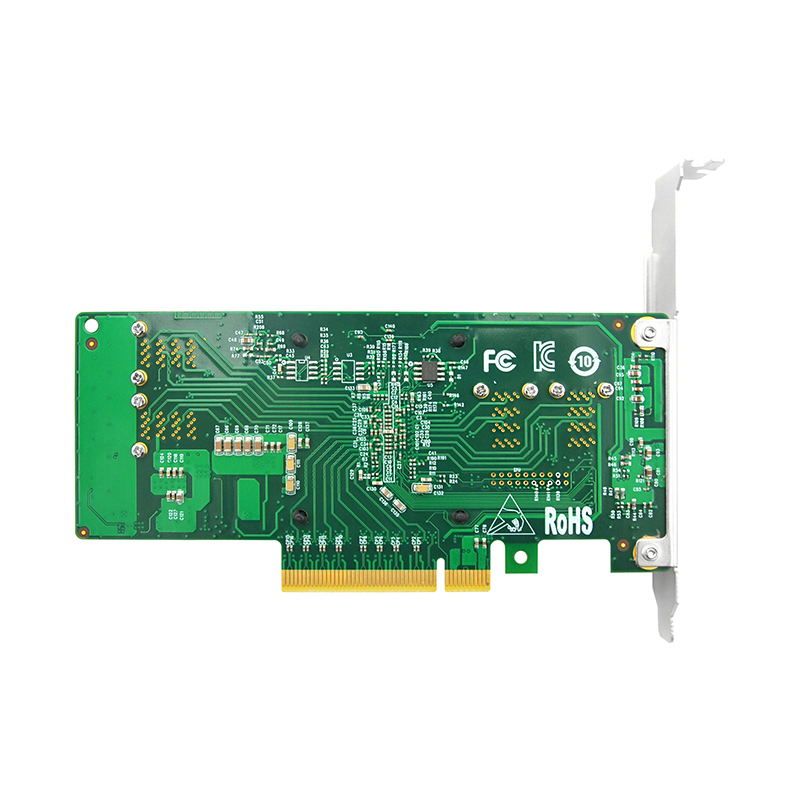

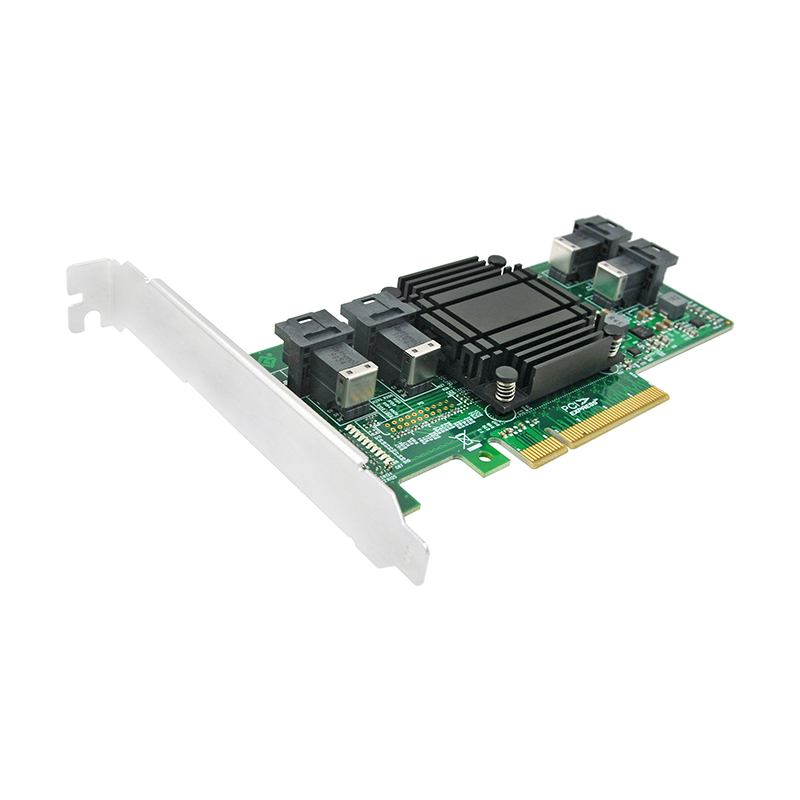

LRNV9324-4I 4 Port U.2 to PCI Express x8 SFF-8643 NVMe Adapter

Product number: LRNV93244I

Views:1886Times

Tags：

Product Model:LRNV9324-4I
Product Name:4 Port PCIe 3.0 x8 to Internal SFF-8643 NVMe Adapter
Chipset：PLX 8724
Interface Type：4*SFF-8643 Connectors
Support Equipment：4*NVMe SSD or 4 Port PCIe x4 or 2 Port PCIe x8
Host Bus Type：PCIe 3.0 x8

Overview
Parameter
Related Products

LRNV9324-4I NVMe Series is PCI Express x8 Gen3 Multi-Host PCI-e switch Card. It offers Multi-Host PCI Express switching capability that enables users to connect multiple hosts to their respective endpoints via scalable, high-bandwidth, non-blocking interconnection to a wide variety of applications including servers, storage, communications, and graphics platforms.

The LRNV9324-4I employs an enhanced version of PLX’s field tested PEXPCIe switch architecture, which allows users to configure the device in legacy single-host mode or multi-host mode with up to six host ports capable of 1+1 (one active & one backup) or N+1 (N active & one backup) host failover. This powerful architectural enhancement enables users to build PCIe based systems to support high-availability, failover, redundant, or clustered systems.

High Performance & Low Packet Latency

The LRNV9324-4I architecture supports packet cut-thru with a latency of less than 130ns between symmetric(x8 to x8). This combined with large packet memory, flexible common buffer/FC credit pool and non-blocking internal switch architecture, provides full line rate on all ports for performance-hungry applications such as servers and switch fabrics. The low latency enables applications to achieve high throughput and performance and supports a packet payload size of up to 2048 bytes, enabling the user to achieve even higher throughput.

HARDWARE
Model	LRNV9324-4I
Number of Device	4 internal
I/O Controller	PEX 8724
Bus Type	PCI Express
Compatible Device	4*NVMe SSD or 4 Port PCIe x4 or 2 Port PCIe x8
CONNECTOR(S)
Device Connector	SFF-8643
Host Connector	PCI Express x8
OPERATING SYSTEM
OS supported list	RedHat; Suse; Mircosoft Windows; Vmware；MAC OSX；FreeBSD
ENVIRONMENTAL
Humidity	0% ~ 90%
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-10°C to 65°C (14°F to 149°F)
PHYSICAL CHARACTERISTICS
Product Dimension	148mm x69mm
Product Weight	150g
Shipping Weight	7.1oz [200g]
Hardware Warranty
Warranty	2 Years
WHAT'S IN THE BOX
Included in Package	1 - PCI Express to SFF-8643 NVMe switch Card
	1 - low-profile bracket
	1 - high-profile bracket(installed)
