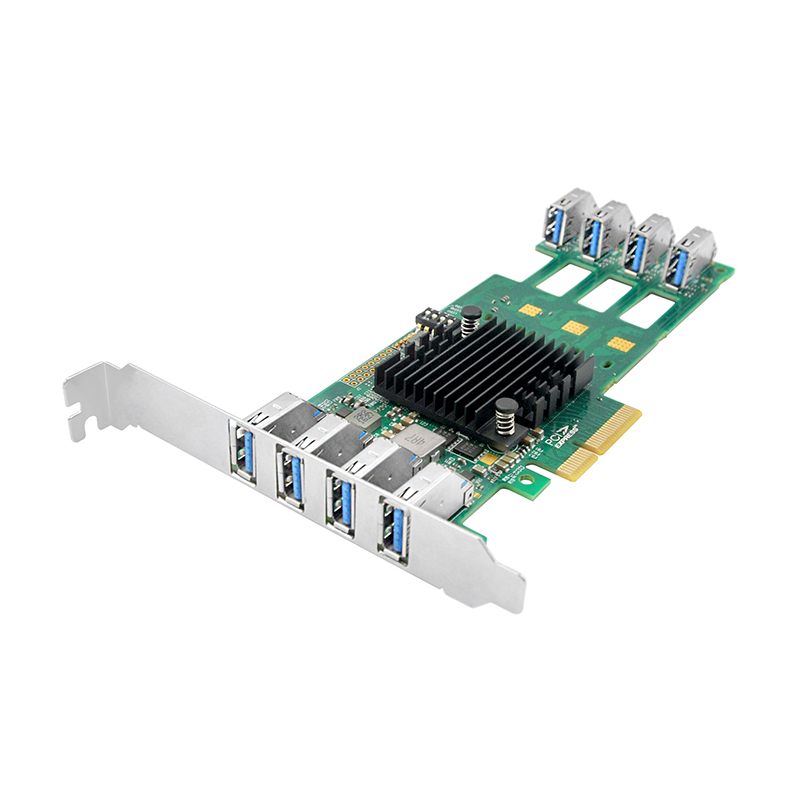

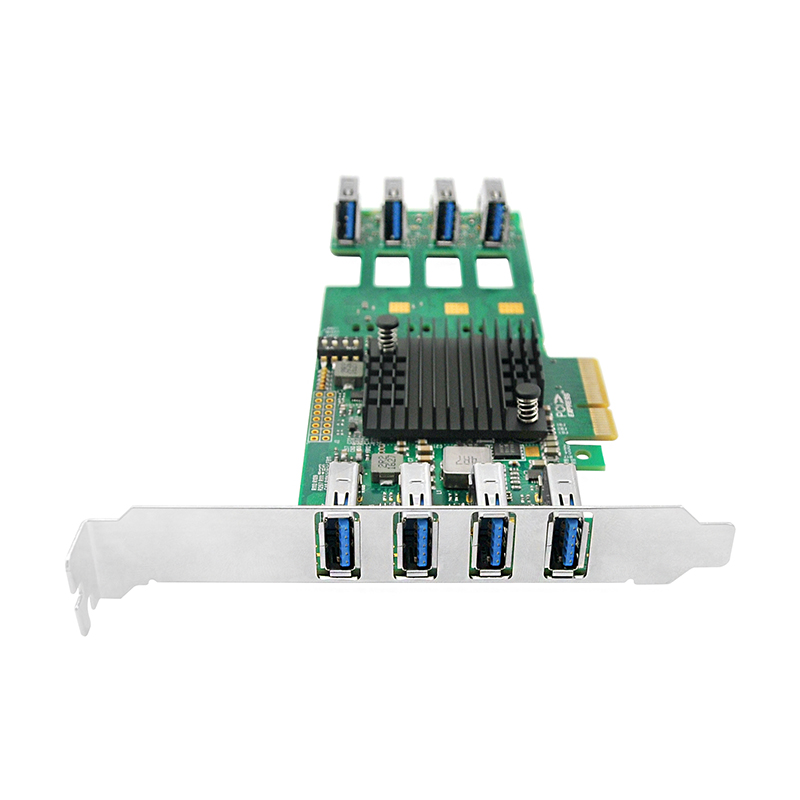

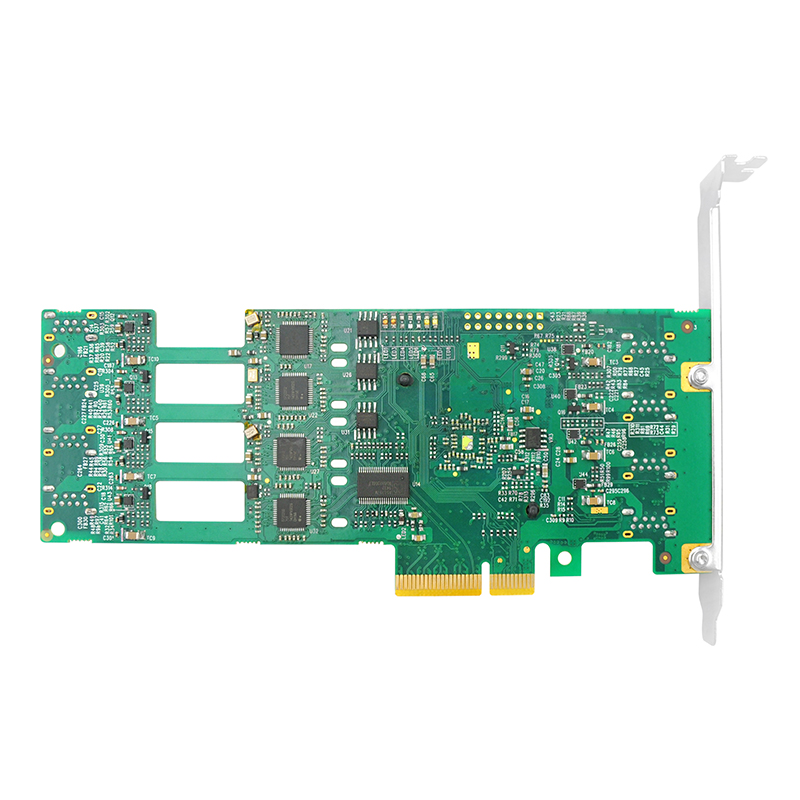

Product number: LRSU9A728A
Views:559Times
Tags:
Features
• x4 PCI Express® Gen2 interface (2GB/s total bandwidth)
• 8-port by x4 NEC uPD720202 host controller
• On-board 5V DC regulated power supply, no external power needed
• User-configurable 900mA and 1500mA current limit
• Software-programmable per-port power on/ off control
• Supports Windows XP/ 7/ 8 and Linux
• Compliant with
- Universal Serial Bus 3.0 specification Rev. 1.0
- Intel® xHCI specification Rev. 1.0
|
HARDWARE |
||||||
|
Model |
LRSU9A72-2A |
LRSU9A72-4A |
LRSU9A72-8A |
LRSU9A72-16A |
||
|
Ports |
2 |
4 |
8 |
16 |
||
|
Controller chip |
upd720202 |
|||||
|
Card Type |
Standard Profile (LP bracket incl.) |
|||||
|
Bus Type |
PCI Express |
|||||
|
Interface |
USB 3.1 Gen 2 |
|||||
|
Port Style |
PCI / PCIe (5 / 3.3V) |
|||||
|
PERFORMANCE |
||||||
|
Type and Rate |
1.3 Gbps (PCIe Bus) |
|||||
|
UASP Support |
USB 3.0 - 5 Gbit/s |
|||||
|
CONNECTOR(S) |
||||||
|
Connector Type(s) |
PCI Express x4 Male |
|||||
|
External Ports |
2 - USB Type-A (9 pin) USB 3.0 Female |
|||||
|
Internal Ports |
SATA Power (15 pin) Plug |
|||||
|
SOFTWARE |
||||||
|
OS Compatibility |
Windows® 7, 8, 8.1, 10Windows Server® 2008 R2, 2012, 2016, Linux® 3.5 to 4.11.x LTS version only |
|||||
|
SPECIAL NOTES / REQUIREMENTS |
||||||
|
System and Cable Requirements |
PCI Express enabled computer or server with anoptional SATA power connector |
|||||
|
ENVIRONMENTAL |
||||||
|
Humidity |
15% ~ 90% |
|||||
|
Operating Temperature |
5°C to 50°C (41°F to 122°F) |
|||||
|
Storage Temperature |
-25°C to 70°C (-13°F to 158°F) |
|||||
|
PHYSICAL CHARACTERISTICS |
||||||
|
Cable Support |
Full height, half length |
|||||
|
Product Height |
55mm |
55mm |
159mm |
210mm |
||
|
Product Length |
105mm |
105mm |
69mm |
108mm |
||
|
Product Weight |
50g |
50g |
180g |
260g |
||
|
Shipping Weight |
70g |
70g |
200g |
290g |
||
|
WARRANTY INFORMATION |
||||||
|
Warranty |
2 Years |
|||||
|
WHAT'S IN THE BOX |
||||||
|
Included in Package |
1 - PCI Express USB Card |
|||||
|
1 - low-profile bracket |
||||||
|
1 – full height bracket(installed) |
||||||
