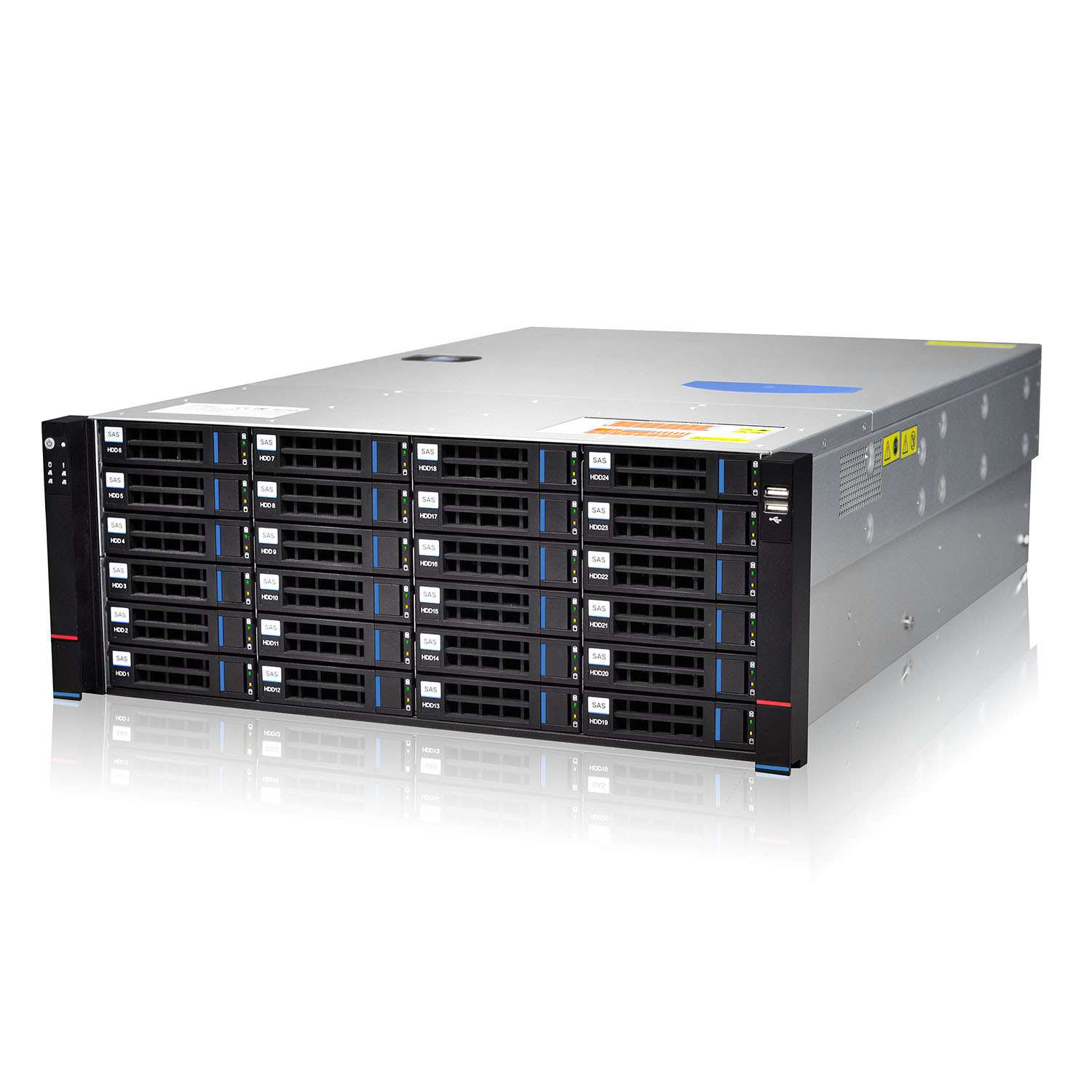

LC424J-12G Storage Disk Expansion Cabinet

Product number: LC424J12G

Views:538Times

Tags：

Linkreal Series LC424J is a high-capacity, high-performance and high-expansion storage disk expansion cabinet newly developed by Linkreal. The product uses Technology SAS 3.0 to ensure its 4800MBbyte/s bandwidth and standard SAS Interface to be compatible with all kinds of Network storage. Therefore its high-speed connection to storage servers is considered as the best choice for Enterprise Big Data Centralized Storage Expansion Cabinet. 24 bays of each cabinet can meet the need of data storage of existing applications. Cascade connection of cabinets can meet the need of storage space for enterprise application in future rapid development. Our product supports SATA/SAS Hard Disk to realize the balance between performance and capacity so that it can meet the demands of massive data reading and writing with a optimal means.

Overview
Parameter
Related Products

Characteristic:

Host Interface: 2*Mini SAS SFF-8644
Disk Interface: 3.0/6.0/12Gb SAS/SATA
Unit Capacity: 360TB at maximum
Support seamless abutment with storage class host
Support Hard Disk hot swap, you can replace Hard Disk with business uninterrupted.
Support cascade connection of Expansion Cabinets.
High-quality Redundant Fan, High-stability Redundant Power Supply to ensure ongoing storage under all kinds of environments.

Order Type:

LC208J-12G
LC212J-12G
LC316J-12G
LC424J-12G
LC436J-12G

Spec.

Model	LC212J-12G	LC316J-12G	LC424J-12G	LC436J-12G
Controller	Single Controller
Host Interface	1*Mini SAS SFF-8644
Expansion Interface	1*Mini SAS SFF-8644
Bandwidth	12Gb/s
HD Support
Disk Interface	6Gb/s /12Gb/s SAS
Unit Capacity	120TB	160TB	240TB	360TB
Disk Spec.	Support 2.5/3.5 inch SAS/SATA Hard Disk
Host Features
Hard Disk Tray	12 Bay Hot Swap	16 Bay Hot Swap	24 Bay Hot Swap	36 Bay Hot Swap
Cooling System	3*8038 Fan	3*12038 Fan	3*12038 Fan	3*12038 Fan
Power Supply	550W 1+1 Hot Swap Platinum Power Supply			800W 1+1 Hot Swap Platinum Power Supply
Alarm Function	LED Indicator, audio alarm
Environment Parameter
A/C Input	100~240V AC
Operating Environment	Temperature: 10℃ to 35℃ Humidity: 35% to 80%
Demension (LWH)	67044487.6mm	670444132mm	670444177mm	670444177mm
Gross Weight	14KG	18KG	21KG	24KG
PS：The above information is for your reference only. It is subject to change without notice!
